OEM Dual Axis Laser Diameter Gauge Measuring Device For Round Object

Product Details

Place of Origin: CHINA

Brand Name: Screate DALA

Model Number: F30-XY

Payment & Shipping Terms

Minimum Order Quantity: Negotiable

Price: Negotiable

Packaging Details: standard packing, as customer demands

Delivery Time: 7 - 15 working Days

Payment Terms: T/T, etc.

Get Best Price
Contact Now
Specifications
Highlight:

Dual Axis Laser Diameter Gauge

,

Laser Diameter Gauge Measuring Device

,

OEM laser diameter measuring device

Measurement Data:
Diameter And Ovality
Application:
Electric Wire&cable, Steel Wire And Tube, Pipe And Hoseetc.
Measurement:
0.5~30mm
Repeatability:
±0.2μm
Accuracy:
±(0.001+0.01%*D)mm
Size:
280*245*58mm
Working Power Source:
24V ±10% 40VA
Communication:
Standard:WIFI、RS485 MODBUS RTU、CAN
Measurement Data:
Diameter And Ovality
Application:
Electric Wire&cable, Steel Wire And Tube, Pipe And Hoseetc.
Measurement:
0.5~30mm
Repeatability:
±0.2μm
Accuracy:
±(0.001+0.01%*D)mm
Size:
280*245*58mm
Working Power Source:
24V ±10% 40VA
Communication:
Standard:WIFI、RS485 MODBUS RTU、CAN
Description

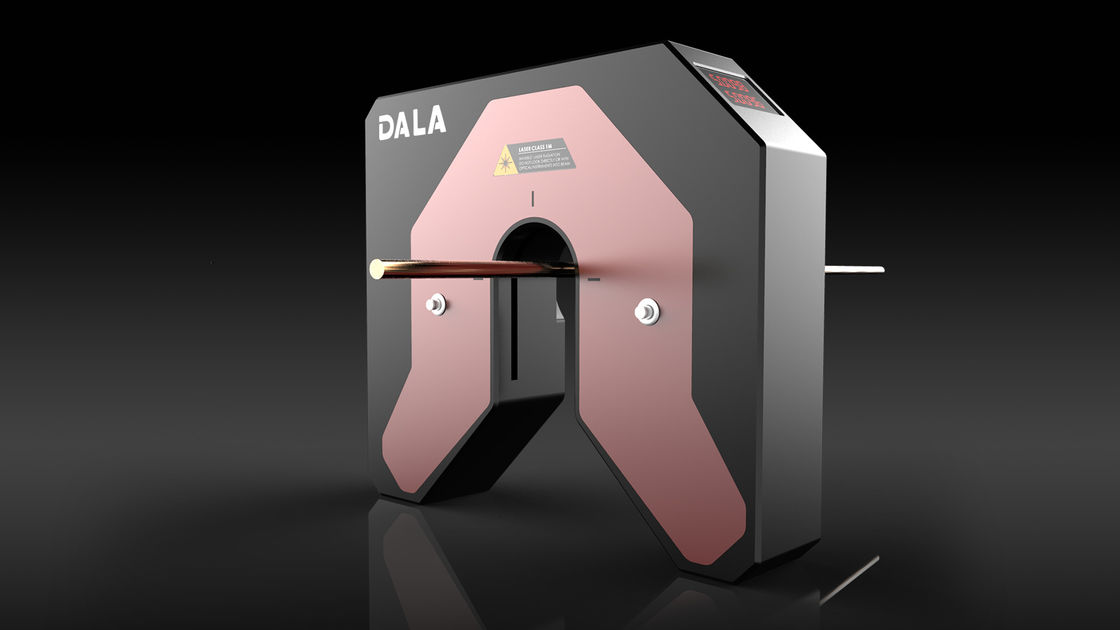

OEM Dual Axis Laser Diameter Gauge Measuring Device For Round Object

Simple Structure,Long Durability

F2030-K series adopt laser diffraction measurement method. It has two main characteristics: simple structure, high accuracy.

There is no motor inside, besides, the smart size and simple structure allows easy maintenance work at the later stage .

It is applicable to the measurement electric wire&cable, steel wire ,PVC tube ,hosing .,etc. transparent and non-transparent object.


OEM Dual Axis Laser Diameter Gauge Measuring Device For Round Object 0





Measurement is accurate even on vibrating object

Extremely short exposure time, capable of capturing object image without any blur shadow,promising accurate measurement.

OEM Dual Axis Laser Diameter Gauge Measuring Device For Round Object 1





Applications



OEM Dual Axis Laser Diameter Gauge Measuring Device For Round Object 2





Touch Screen,Computer,Cellphone

DALA F30-XY can be managed by computer ,cellphone and Touch screen,like parameter setting ,measurement data management ,

and so on,customers can choose as their application request.
OEM Dual Axis Laser Diameter Gauge Measuring Device For Round Object 3

Technical Specification



Model F30-XY
Axis 2-axis
Measurement data diameter and ovality
Frequency 500Hz/axis
Measurement range 0.5~30mm
Repeatability(1) ±0.2μm
Accuracy(2) ±(0.001+0.01%*D)mm
Size 280*245*58mm
Working power source 24V ±10% 40VA
Running temperature 5℃~50℃
Display LED display
Commuincation port

Standard:RS485 MODBUS RTU,CAN
Option:WIFI

Electrical port Standard: digital output(relay),digital input,analog input,encoder pulse input port
Option:PI feedback control ,analog output(3)
Data colletion & analysis available (option DS14 ZT display and control system,DMS1000)
Out-of-tolerance alarm available
Transparent mode available



Note:

(1) set sliding window as 100ms, outside diameter repeatability of φ1mm round rod at measurement center area

(2) set sliding window as 100ms, outside diameter deviation of φ1mm round rod at measurement area

(3) PI feedback control is option, but must order at placing order
