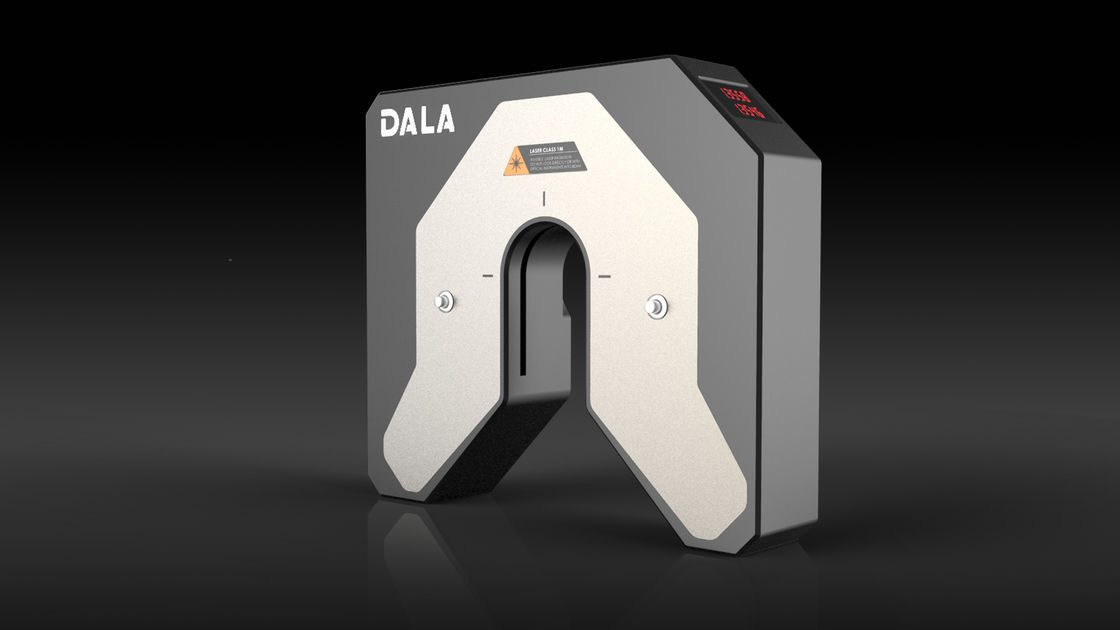

Dual Axis Handheld Laser Micrometer Diameter Gauge For Hose Pipe Calibration

Name: Dual Axis Handheld Laser Micrometer Diameter Gauge For Hose Pipe Calibration
Brand: Screate DALA
SKU: F2030-S
Rating: 4.7 (131 reviews)

Product Details

Place of Origin: CHINA

Brand Name: Screate DALA

Model Number: F2030-S

Payment & Shipping Terms

Minimum Order Quantity: Negotiable

Price: Negotiable

Packaging Details: standard packing, as customer demands

Delivery Time: 7 - 15 working Days

Payment Terms: T/T, etc.

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                    Dual Axis handheld laser micrometer, Pipe Calibration handheld laser micrometer, Handheld laser scan micrometer


Measurement Data:	Diameter And Ovality	Application:	Electric Wire&cable, Steel Wire ,tube And Hose Etc
Measurement:	0.5~30mm	Repeatability:	±0.2μm
Accuracy:	±（0.001+0.01%*D)mm	Size:	28024558mm
Working Power Source:	24V ±10% 40VA	Communication:	WIFI,RS485 MODBUS RTU,CAN,PROFINET,PROFIBUS,ETHERNET IP

Measurement Data:	Diameter And Ovality
Application:	Electric Wire&cable, Steel Wire ,tube And Hose Etc
Measurement:	0.5~30mm
Repeatability:	±0.2μm
Accuracy:	±（0.001+0.01%*D)mm
Size:	28024558mm
Working Power Source:	24V ±10% 40VA
Communication:	WIFI,RS485 MODBUS RTU,CAN,PROFINET,PROFIBUS,ETHERNET IP

Description

Dual Axis Handheld Laser Micrometer Diameter Gauge For Hose Pipe Calibration

Technology of Simple Structure, Long Durability

The F2030-S utilizes a laser diffraction measurement technique, characterized by its straightforward design and exceptional precision.

With no moving parts, the device can maintain accurate performance over an extended service life without the need for calibration.

The extremely short exposure time allows the device to adapt to vibrating objects and high-speed wires effectively.

It is application to electric cables, steel wires, hose and pipe etc.

Measurement is accurate even on vibrating object

The extremely short exposure time allows for capturing images of objects without any blur, ensuring accurate measurements.

Applications

Dual Axis Handheld Laser Micrometer Diameter Gauge For Hose Pipe Calibration 2

Touch Screen,Computer,Cellphone

DALA F2030-K can be managed by computer ,cellphone and touch screen,like parameter setting ,measurement data management ,

and so on,customers can choose as their application request.
Dual Axis Handheld Laser Micrometer Diameter Gauge For Hose Pipe Calibration 3

Technical Specification

Model	F2030-S
Axis	2-axis
Measurement data	diameter and ovality
Frequency	2000Hz (1000Hz/axis)
Measurement range	0.5~30mm
Repeatability⁽¹⁾	±0.2μm
Accuracy⁽²⁾	±(0.001+0.01%*D)mm
Size	28024558mm
Working power source	24V ±10% 40VA
Running temperature	5℃~50℃
Display	LED display
Commuincation port	Standard:WIFI,RS485 MODBUS RTU,CAN Option:PROFIBUS,PROFINET, EtherNet/IP,EtherCAT
Electrical port	Standard: digital output(relay),digital input,analog input,encoder pulse input port Option:PI feedback control ⁽³⁾
Data colletion & analysis	available (option DS14 ZT display and control system,DMS1000)
Out-of-tolerance alarm	available
Transparent mode	available

Note:

(1) set sliding window as 100ms, outside diameter repeatability of φ1mm round rod at measurement center area

(2) set sliding window as 100ms, outside diameter deviation of φ1mm round rod at measurement area

(3) PI feedback control is option, but must order at placing order
