Product Details
Place of Origin: CHINA
Brand Name: Screate DALA
Model Number: E2
Payment & Shipping Terms
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: standard packing, as customer demands
Delivery Time: 7 - 15 working Days
Payment Terms: T/T, etc.
Measurement Data: |
Diameter & Ovality |
Application: |
Fine Wire |
Measurement: |
0.03~2mm |
Repeatability: |
±0.0001mm |
Accuracy: |
±（0.00024+0.06%*D)mm |
Size: |
176*41*136mm |
Working Power Source: |
24V ±10% 40VA |
Communication: |
RS485(Mod Bus RTU)，CAN(CAN Open)，WIFI(for Data Debugging) |
Measurement Data: |
Diameter & Ovality |
Application: |
Fine Wire |
Measurement: |
0.03~2mm |
Repeatability: |
±0.0001mm |
Accuracy: |
±（0.00024+0.06%*D)mm |
Size: |
176*41*136mm |
Working Power Source: |
24V ±10% 40VA |
Communication: |
RS485(Mod Bus RTU)，CAN(CAN Open)，WIFI(for Data Debugging) |

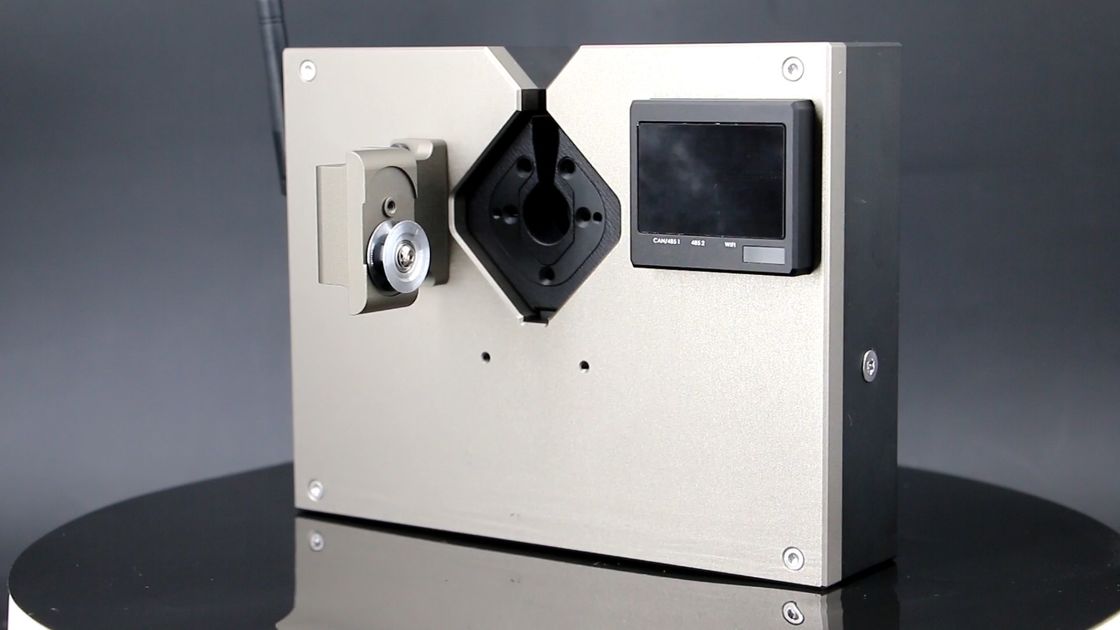

The DALA fine wire laser micrometer series adopts laser diffraction measurement technology, featuring a simple structure and high accuracy. There is no motor inside. Furthermore, its compact size and straightforward construction allow for easy maintenance in the future.
DALA E2 can be managed by touch screen,computer and cellphone,like parameter setting ,measurement data management ,and so on,
| Model | E2 |
|---|---|
| Axis | 2-axis |
| Measurement data | diameter,ovality |
| Measurement range | 0.03~2mm |
| Repeatability | ±0.0001mm |
| Accuracy | ±(0.00024+0.06%*D)mm |
| Size | 176*41*136mm |
| Working power source | 24V ±10% 40VA |
| Running temperature | 5℃~50℃ |
| Display | LED display |
| Commuincation port | RS485(Mod bus RTU),CAN(CAN open),WIFI(for data debugging) |
| Data colletion & analysis | available(option DS14 ZT display and control system,DMS1000) |
| Out-of-tolerance alarm | available |
| Far-end display function | available |
