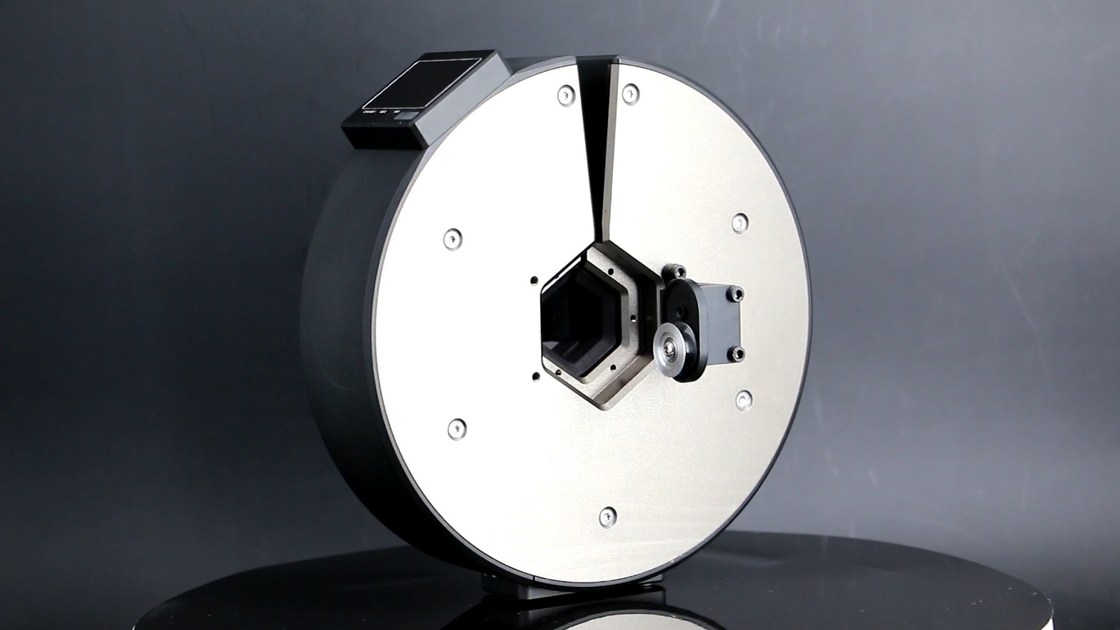

3 Axis Portable Laser Micrometer Diameter Gauge For Fine Wire 24V

Product Details

Place of Origin: CHINA

Brand Name: Screate DALA

Model Number: E3

Payment & Shipping Terms

Minimum Order Quantity: Negotiable

Price: Negotiable

Packaging Details: standard packing, as customer demands

Delivery Time: 7 - 15 working Days

Payment Terms: T/T, etc.

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                    24V portable laser micrometer, 3 Axis portable laser micrometer, Portable 3 axis laser micrometer


Measurement Data:	Diameter	Application:	Fine Wire
Measurement:	0.015~1mm	Repeatability:	±0.05μm
Accuracy:	±（0.00012+0.03%*D)mm	Size:	18248186mm
Working Power Source:	24V ±10% 40VA	Communication:	RS485(Mod Bus RTU)，CAN(CAN Open)，WIFI(for Data Debugging)

Measurement Data:	Diameter
Application:	Fine Wire
Measurement:	0.015~1mm
Repeatability:	±0.05μm
Accuracy:	±（0.00012+0.03%*D)mm
Size:	18248186mm
Working Power Source:	24V ±10% 40VA
Communication:	RS485(Mod Bus RTU)，CAN(CAN Open)，WIFI(for Data Debugging)

Description

3 Axis Portable Laser Micrometer Diameter Gauge For Fine Wire 24V

E3 Laser micrometer, High precision and long durability

The E3 leverages laser diffraction measurement technology, offering the optimal high-precision solution for fine wire applications. Additionally, its sleek design and uncomplicated structure ensure maintenance is a breeze for years to come.

3-Axis Measurement, No moving parts

Reduced blind areas lead to increased accuracy in measurement results.

Touch Screen,Computer,Cellphone

The DALA E3 provides an extensive range of management options, spanning touch screen, computer, and cellphone interfaces. This comprehensive flexibility enables users to fine-tune parameters, seamlessly manage measurement data, and execute a multitude of tasks to precisely meet their specific application demands.

Technical Specification

Model	E3
Axis	3-axis
Measurement data	diameter,Ovality
Measurement range	0.015~1mm
Repeatability	±0.05μm
Accuracy	±(0.00012+0.03%*D)mm
Size	18248186mm
Working power source	24V ±10% 40VA
Running temperature	5℃~50℃
Display	LED display
Commuincation port	RS485(Mod bus RTU),CAN(CAN open),WIFI(for data debugging)
Data colletion & analysis	available(option DS14 ZT display and control system,DMS1000)
Out-of-tolerance alarm	available
Far-end display function	available
