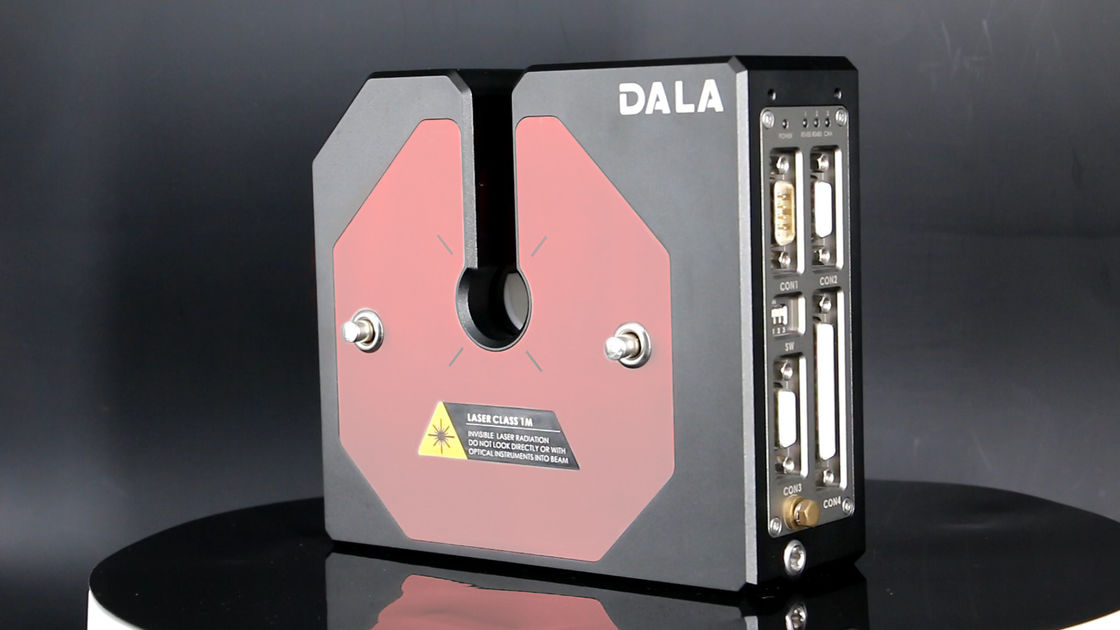

Customized Dual Axis Laser Micrometer Diameter Gauge High Precision

Name: Customized Dual Axis Laser Micrometer Diameter Gauge High Precision
Brand: Screate DALA
SKU: F10-XY
Rating: 5 (128 reviews)

Product Details

Place of Origin: CHINA

Brand Name: Screate DALA

Model Number: F10-XY

Payment & Shipping Terms

Minimum Order Quantity: Negotiable

Price: Negotiable

Packaging Details: standard packing, as customer demands

Delivery Time: 7 - 15 working Days

Payment Terms: T/T, etc.

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                    Customized Dual Axis Laser Micrometer, Dual Axis Laser Micrometer Gauge, High Precision laser diameter


Measurement Data:	Diameter And Ovality	Application:	Electric Wire&cable, Steel Wire ,enamelled Copper Wire, Etc.
Measurement:	0.2~10mm	Repeatability:	±0.1μm
Accuracy:	±（0.0005+0.01%*D)mm	Size:	15514058mm
Working Power Source:	24V ±10% 40VA	Communication:	Digital Output(relay),digital Input,analog Input,encoder Pulse Input Port

Measurement Data:	Diameter And Ovality
Application:	Electric Wire&cable, Steel Wire ,enamelled Copper Wire, Etc.
Measurement:	0.2~10mm
Repeatability:	±0.1μm
Accuracy:	±（0.0005+0.01%*D)mm
Size:	15514058mm
Working Power Source:	24V ±10% 40VA
Communication:	Digital Output(relay),digital Input,analog Input,encoder Pulse Input Port

Description

Customized Dual Axis Laser Micrometer Diameter Gauge High Precision

Technology of Simple Structure, Long Durability

F10-XY products employ laser diffraction measurement technology. This approach calculates measurement values based on the principle of light diffraction and has two main features:

1. Simple structure and high precision.
2. No motors or optical lenses inside the product, making it simple, durable, and easy to maintain.

F10-XY products have a minimum repeatability accuracy of 0.1 μm.

It is suitable for measuring both transparent and non-transparent wires, such as electrical wires, cables, steel wires, enameled wires, medical tubing, and 3D printing materials.

Customized Dual Axis Laser Micrometer Diameter Gauge High Precision 0

Extremely short exposure time of 1.1us

With an ultra-short exposure time, the product can quickly capture the measured object. Even if the object is shaking, no blurring will occur, ensuring accurate measurements.

Customized Dual Axis Laser Micrometer Diameter Gauge High Precision 1

Touch Screen,Computer,Cellphone

The DALA F10-XY can be controlled via computer, cellphone, or touch screen, allowing for tasks such as parameter setting and measurement data management. Customers can select the control method that best suits their application needs.

Customized Dual Axis Laser Micrometer Diameter Gauge High Precision 2

Technical Specification

Model	F10-XY
Axis	2-axis
Measurement data	diameter and ovality
Frequency	500Hz/axis
Measurement range	0.2~10mm
Repeatability⁽¹⁾	±0.1μm
Accuracy⁽²⁾	±(0.0005+0.01%*D)mm
Size	15514058mm
Working power source	24V ±10% 40VA
Running temperature	5℃~50℃
Display	LED display
Commuincation port	Standard:WIFI,RS485 MODBUS RTU,CAN Option:PROFIBUS,PROFINET, EtherNet/IP,EtherCAT
Electrical port	Standard: digital output(relay),digital input,analog input,encoder pulse input port Option:PI feedback control ,analog output⁽³⁾
Data colletion & analysis	available (option DS14 ZT display and control system,DMS1000)
Out-of-tolerance alarm	available
Transparent mode	available

Note:

(1) set sliding window as 100ms, outside diameter repeatability of φ1mm round rod at measurement center area

(2) set sliding window as 100ms, outside diameter deviation of φ1mm round rod at measurement area

(3) PI feedback control is option, but must order at placing order
