Product Details
Place of Origin: CHINA
Brand Name: Screate DALA
Model Number: D360
Payment & Shipping Terms
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: standard packing, as customer demands
Delivery Time: 7 - 15 working Days
Payment Terms: T/T, etc.
Measurement Data: |
Diameter & Ovality |
Application: |
Fine Wire |
Measurement: |
0.005~0.3mm, 0.015~1.0mm |
Repeatability: |
±0.01um |
Accuracy: |
±（0.00003+0.03%*D)mm |
Size: |
277*51*112.5mm(Without Rotation Lamping) |
Working Power Source: |
24V ±10% 40VA |
Communication: |
RS485 |
Measurement Data: |
Diameter & Ovality |
Application: |
Fine Wire |
Measurement: |
0.005~0.3mm, 0.015~1.0mm |
Repeatability: |
±0.01um |
Accuracy: |
±（0.00003+0.03%*D)mm |
Size: |
277*51*112.5mm(Without Rotation Lamping) |
Working Power Source: |
24V ±10% 40VA |
Communication: |
RS485 |

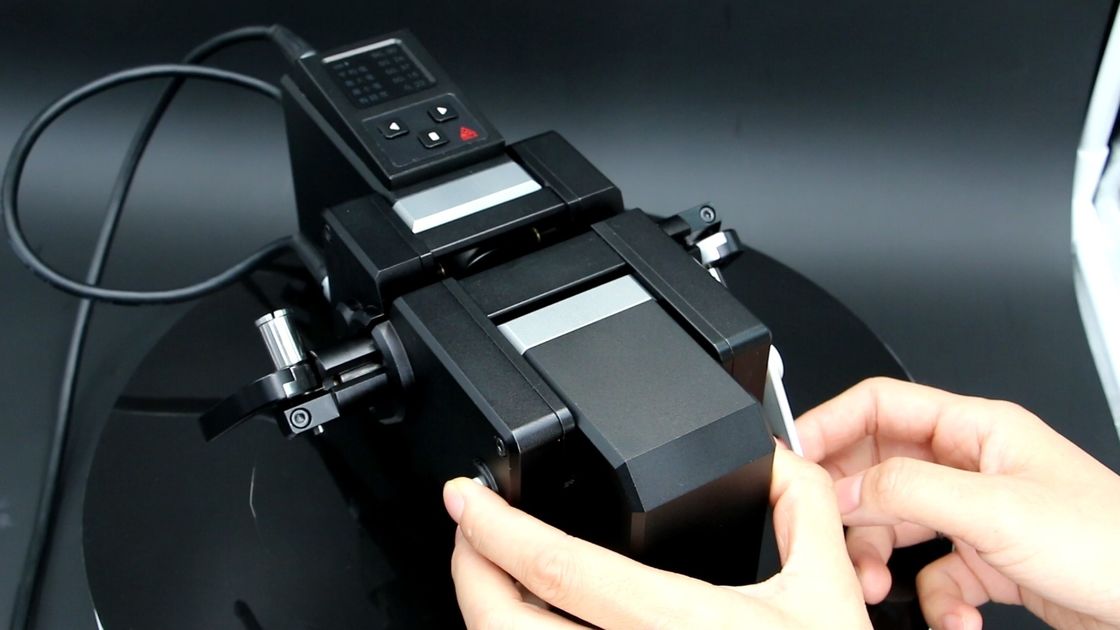

D360 fine wire laser micrometer series incorporates laser diffraction measurement technology, characterized by its straightforward design and exceptional precision. The absence of internal motors in the D360 fine wire laser micrometer series ensures a compact and straightforward design, simplifying future maintenance tasks effortlessly.
| Model |
D360-1003R(diameter&ovality) D360-1003(diameter) |
D360-101R(diameter&ovality) D360-101(diameter) |
|---|---|---|
| Axis | 1-axis | 1-axis |
| Measurement data | diameter,Ovality | diameter,Ovality |
| Measurement range | 0.005~0.3mm | 0.015~1.0mm |
| Repeatability | ±0.01um | ±0.04um |
| Accuracy | ±(0.00003+0.03%*D)mm | ±(0.0001+0.03%*D)mm |
| Size |
277*51*112.5mm(Without rotation lamping ) 277*185*112.5mm |
227*51*112.5mm(Without rotation lamping ) 227*185*112.5mm |
| Working power source | 24V ±10% 40VA | |
| Working temperature | 0℃~40℃ | |
| Storage temperature | 0℃~60℃ | |
| Relative humidity | Maximum 85%, no condensation | |
| Display | LCD display | |
| Commuincation port | RS485 | |
| Data colletion & analysis | Support | |
| Calibration method | automatic calibration | |
