Product Details
Place of Origin: CHINA
Brand Name: Screate DALA
Model Number: E3
Payment & Shipping Terms
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: standard packing, as customer demands
Delivery Time: 7 - 15 working Days
Payment Terms: T/T, etc.
Measurement Data: |
Diameter |
Application: |
Fine Wire |
Measurement: |
0.015~1mm |
Repeatability: |
±0.05μm |
Accuracy: |
±（0.00012+0.03%*D)mm |
Size: |
182*48*186mm |
Working Power Source: |
24V ±10% 40VA |
Communication: |
RS485(Mod Bus RTU)，CAN(CAN Open)，WIFI(for Data Debugging) |
Measurement Data: |
Diameter |
Application: |
Fine Wire |
Measurement: |
0.015~1mm |
Repeatability: |
±0.05μm |
Accuracy: |
±（0.00012+0.03%*D)mm |
Size: |
182*48*186mm |
Working Power Source: |
24V ±10% 40VA |
Communication: |
RS485(Mod Bus RTU)，CAN(CAN Open)，WIFI(for Data Debugging) |

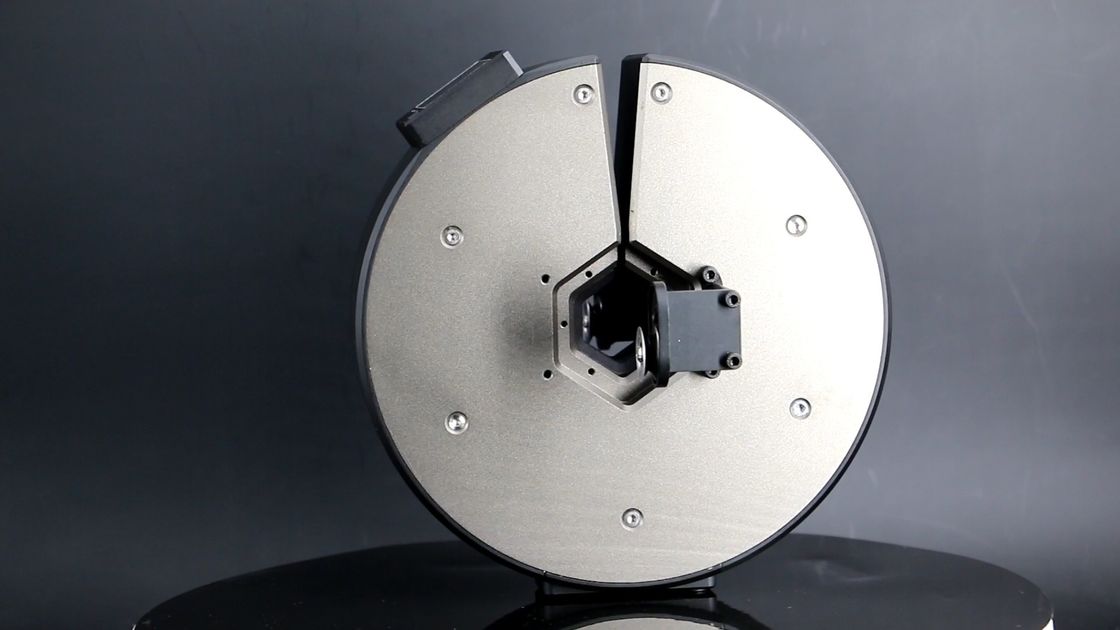

| Model | E3 |
|---|---|
| Axis | 3-axis |
| Measurement data | diameter,Ovality |
| Measurement range | 0.015~1mm |
| Repeatability | ±0.05μm |
| Accuracy | ±(0.00012+0.03%*D)mm |
| Size | 182*48*186mm |
| Working power source | 24V ±10% 40VA |
| Running temperature | 5℃~50℃ |
| Display | LED display |
| Commuincation port | RS485(Mod bus RTU),CAN(CAN open),WIFI(for data debugging) |
| Data colletion & analysis | available(option DS14 ZT display and control system,DMS1000) |
| Out-of-tolerance alarm | available |
| Far-end display function | available |
