Product Details
Place of Origin: CHINA
Brand Name: Screate DALA
Model Number: E2
Payment & Shipping Terms
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: standard packing, as customer demands
Delivery Time: 7 - 15 working Days
Payment Terms: T/T, etc.
Measurement Data: |
Diameter & Ovality |
Application: |
Fine Wire |
Measurement: |
0.03~2mm |
Repeatability: |
±0.0001mm |
Accuracy: |
±（0.00024+0.06%*D)mm |
Size: |
176*41*136mm |
Working Power Source: |
24V ±10% 40VA |
Communication: |
RS485(Mod Bus RTU)，CAN(CAN Open)，WIFI(for Data Debugging) |
Measurement Data: |
Diameter & Ovality |
Application: |
Fine Wire |
Measurement: |
0.03~2mm |
Repeatability: |
±0.0001mm |
Accuracy: |
±（0.00024+0.06%*D)mm |
Size: |
176*41*136mm |
Working Power Source: |
24V ±10% 40VA |
Communication: |
RS485(Mod Bus RTU)，CAN(CAN Open)，WIFI(for Data Debugging) |

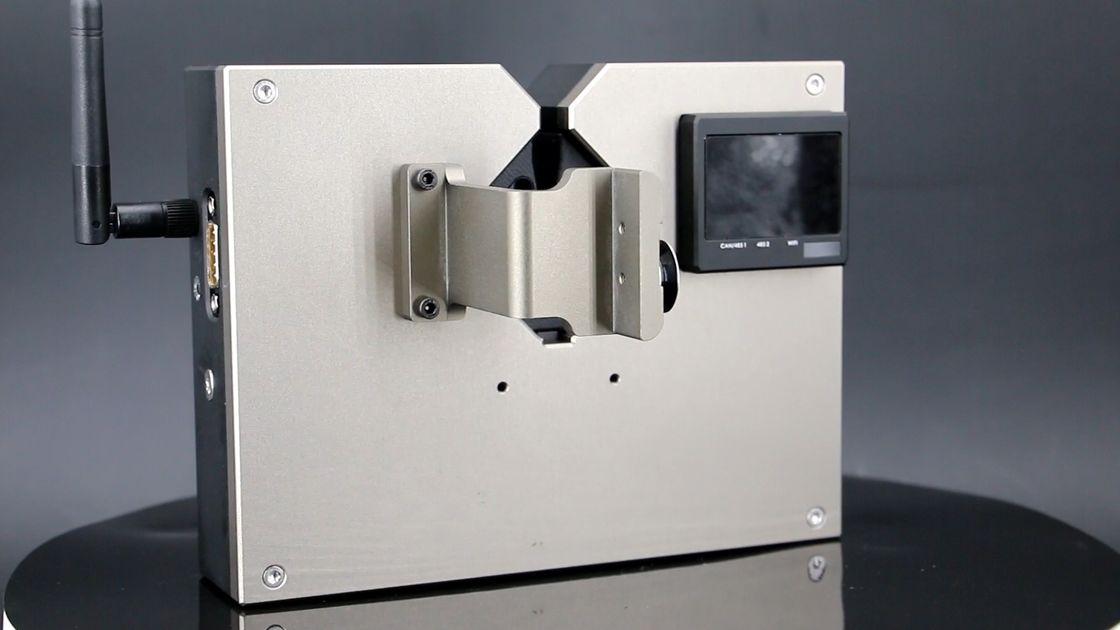

DALA E2 can be managed by touch screen,computer and cellphone,like parameter setting ,measurement data management ,and so on,
customers can choose as their application request.
| Model | E2 |
|---|---|
| Axis | 2-axis |
| Measurement data | diameter,ovality |
| Measurement range | 0.03~2mm |
| Repeatability | ±0.0001mm |
| Accuracy | ±(0.00024+0.06%*D)mm |
| Size | 176*41*136mm |
| Working power source | 24V ±10% 40VA |
| Running temperature | 5℃~50℃ |
| Display | LED display |
| Commuincation port | RS485(Mod bus RTU),CAN(CAN open),WIFI(for data debugging) |
| Data colletion & analysis | available(option DS14 ZT display and control system,DMS1000) |
| Out-of-tolerance alarm | available |
| Far-end display function | available |
