Product Details
Place of Origin: CHINA
Brand Name: Screate DALA
Model Number: H1
Payment & Shipping Terms
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: standard packing, as customer demands
Delivery Time: 7 - 15 working Days
Payment Terms: T/T, etc.
Measurement Data: |
Diameter |
Application: |
Fine Wire |
Measurement: |
0.015~1mm |
Repeatability: |
±0.08um |
Accuracy: |
±（0.00015+0.03%*D)mm |
Size: |
208*53*57.5 |
Working Power Source: |
9V ±10% 12VA |
Calibration Method: |
Automatic Calibration |
Measurement Data: |
Diameter |
Application: |
Fine Wire |
Measurement: |
0.015~1mm |
Repeatability: |
±0.08um |
Accuracy: |
±（0.00015+0.03%*D)mm |
Size: |
208*53*57.5 |
Working Power Source: |
9V ±10% 12VA |
Calibration Method: |
Automatic Calibration |

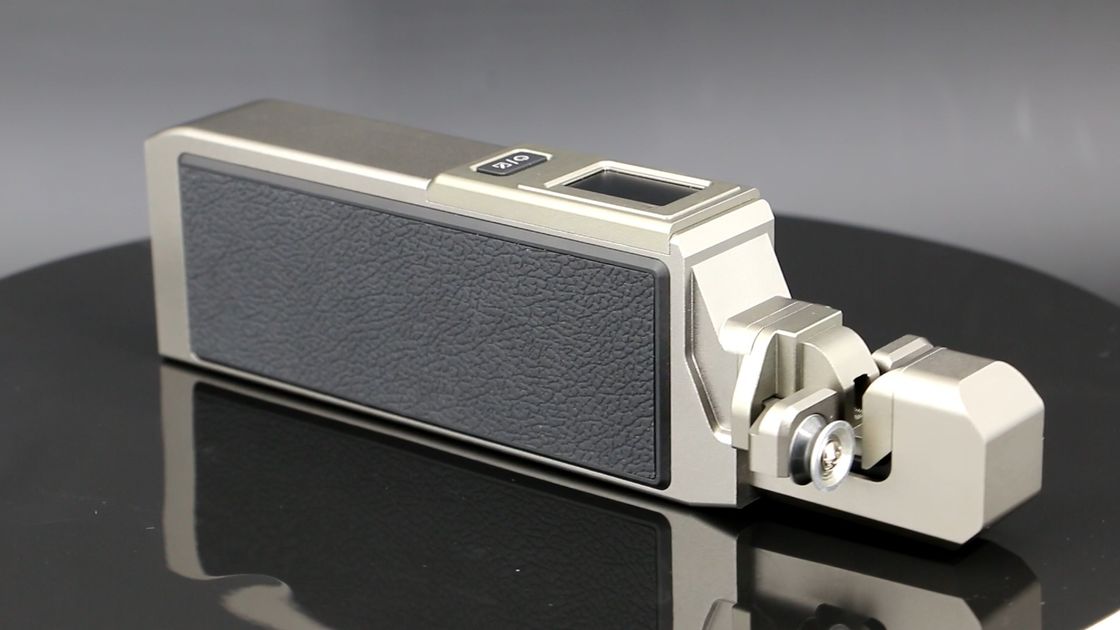

Size : 208*53*57.5mm, Weight :557g, it is applicable to on site samping check.
| Model |
H1 |
|---|---|
| Axis | 1-axis |
| Measurement data | diameter |
| Measurement range | 0.015~1mm |
| Repeatability | ±0.08um |
| Accuracy | ±(0.00015+0.03%*D)mm |
| Size |
208*53*57.5mm |
| Working power source | 9V ±10% 12VA |
| Working temperature | 0℃~55℃ |
| Storage temperature | 0℃~60℃ |
| Relative humidity | Maximum 85%, no condensation |
| Display | LCD HD display |
| Data collection and analysis | Support |
| Data storage & exported | Support |
| Power bank charging | Support |
| Battery capacity | About 10 hours |
| Calibration method | Automatic calibration |
