Product Details
Place of Origin: CHINA
Brand Name: Screate DALA
Model Number: F10-XY
Payment & Shipping Terms
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: standard packing, as customer demands
Delivery Time: 7 - 15 working Days
Payment Terms: T/T, etc.
Measurement Data: |
Diameter And Ovality |
Application: |
Electric Wire&cable, Steel Wire ,enamelled Copper Wire, Etc. |
Measurement: |
0.2~10mm |
Repeatability: |
±0.1μm |
Accuracy: |
±（0.0005+0.01%*D)mm |
Size: |
155*140*58mm |
Working Power Source: |
24V ±10% 40VA |
Communication: |
Digital Output(relay),digital Input,analog Input,encoder Pulse Input Port |
Measurement Data: |
Diameter And Ovality |
Application: |
Electric Wire&cable, Steel Wire ,enamelled Copper Wire, Etc. |
Measurement: |
0.2~10mm |
Repeatability: |
±0.1μm |
Accuracy: |
±（0.0005+0.01%*D)mm |
Size: |
155*140*58mm |
Working Power Source: |
24V ±10% 40VA |
Communication: |
Digital Output(relay),digital Input,analog Input,encoder Pulse Input Port |

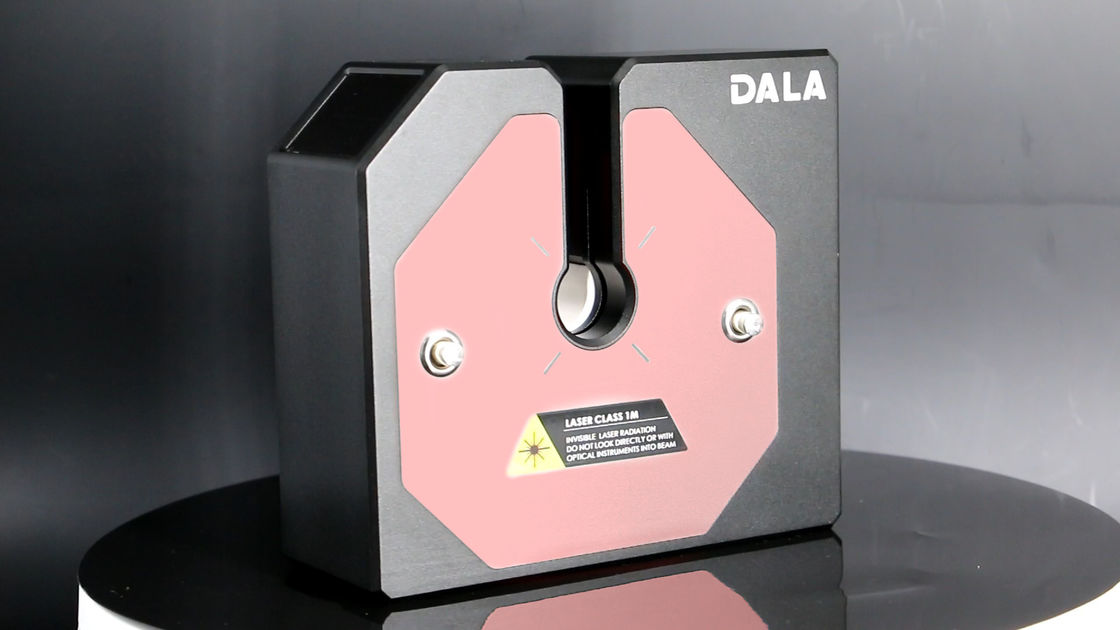

It is suitable for measuring both transparent and non-transparent wires, such as electrical wires, cables, steel wires, enameled wires, medical tubing, and 3D printing materials.
| Model | F10-XY |
|---|---|
| Axis | 2-axis |
| Measurement data | diameter and ovality |
| Frequency | 500Hz/axis |
| Measurement range | 0.2~10mm |
| Repeatability(1) | ±0.1μm |
| Accuracy(2) | ±(0.0005+0.01%*D)mm |
| Size | 155*140*58mm |
| Working power source | 24V ±10% 40VA |
| Running temperature | 5℃~50℃ |
| Display | LED display |
| Commuincation port | Standard:WIFI,RS485 MODBUS RTU,CAN |
| Electrical port | Standard: digital output(relay),digital input,analog input,encoder pulse input port Option:PI feedback control ,analog output(3) |
| Data colletion & analysis | available (option DS14 ZT display and control system,DMS1000) |
| Out-of-tolerance alarm | available |
| Transparent mode | available |
Note:
(1) set sliding window as 100ms, outside diameter repeatability of φ1mm round rod at measurement center area
(2) set sliding window as 100ms, outside diameter deviation of φ1mm round rod at measurement area
(3) PI feedback control is option, but must order at placing order
