$4 Axis Laser Caliper Diameter Gauge Diffraction Device High Speed$

4 Axis Laser Caliper Diameter Gauge Diffraction Device High Speed

Name: 4 Axis Laser Caliper Diameter Gauge Diffraction Device High Speed
Brand: SCreate Dala Technology Co., Ltd.
SKU: F4010-k
Price: Negotiable USD
Availability: InStock

Product Details

Place of Origin: CHINA

Brand Name: Screate DALA

Model Number: F4010-k

Payment & Shipping Terms

Minimum Order Quantity: Negotiable

Price: Negotiable

Packaging Details: standard packing, as customer demands

Delivery Time: 7 - 15 working Days

Payment Terms: T/T, etc.

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                    4 Axis laser caliper, Diffraction laser caliper, laser diameter Device


Measurement Data:	Diameter And Ovality, Lump And Necks	Application:	Electric Wire&cable, Steel Wire ,enamelled Copper Wire, Etc.
Measurement:	0.3~10mm	Repeatability:	±0.2μm
Frequency:	10KHz/axis	Size:	27524260mm
Working Power Source:	24V ±10% 40VA	Communication:	WIFI,RS485 MODBUS RTU,CAN,PROFINET,PROFIBUS,ETHERNET IP

Measurement Data:	Diameter And Ovality, Lump And Necks
Application:	Electric Wire&cable, Steel Wire ,enamelled Copper Wire, Etc.
Measurement:	0.3~10mm
Repeatability:	±0.2μm
Frequency:	10KHz/axis
Size:	27524260mm
Working Power Source:	24V ±10% 40VA
Communication:	WIFI,RS485 MODBUS RTU,CAN,PROFINET,PROFIBUS,ETHERNET IP

Description

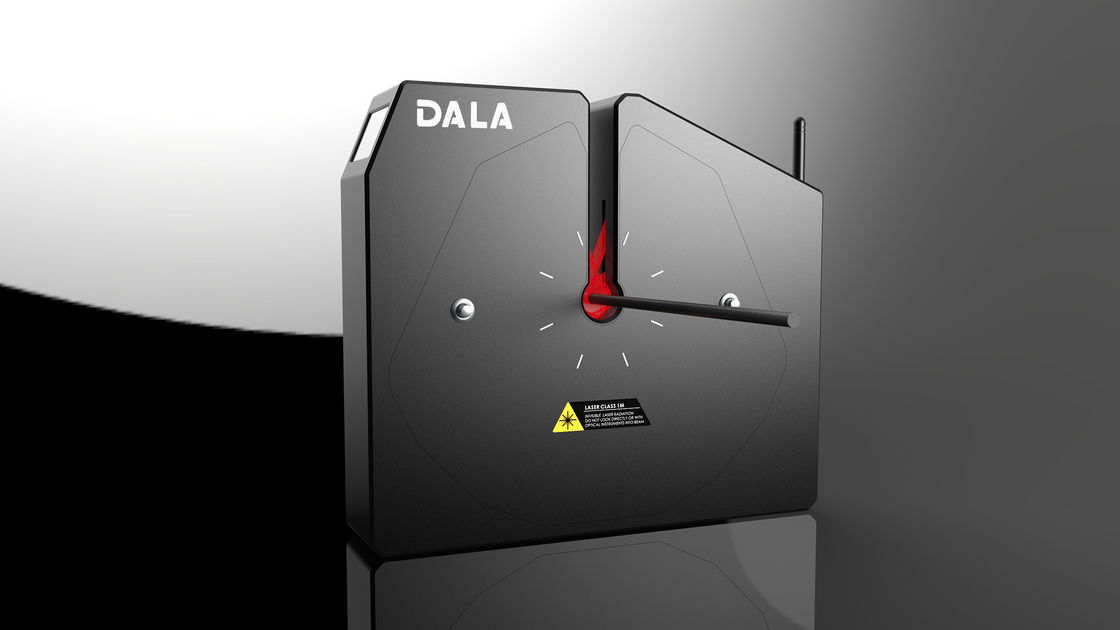

4 Axis Laser Caliper Diameter Gauge Diffraction Device High Speed

Good at Vibrating object measurement , restore object actual status

The F4010-K operates on the laser diffraction principle, specifically leveraging Fresnel diffraction. Its straightforward design ensures not only stable but also highly accurate measurements over an extended service life, setting a new standard for reliability in precision measurement.

With a measurement repeatability of ±0.2um, F4010-k is versatile, applicable to various materials such as electric wire & cable, steel wire, enamelled copper wire, medical tubing, 3D filament, and more, regardless of their transparency.

$4 Axis Laser Caliper Diameter Gauge Diffraction Device High Speed 0$

Single axis sampling frequency of 10 KHz

The sampling frequency can reach up to 10 kHz due to the absence of motor speed limitations, allowing for the collection of more detailed information about the object being measured.

$4 Axis Laser Caliper Diameter Gauge Diffraction Device High Speed 1$

4-axis measurement ,Less bind area

The figure below explains the relationship between the measurement results and the number of axes. The greater the number of axes, the fewer the blind spots, resulting in more accurate measurements.

$4 Axis Laser Caliper Diameter Gauge Diffraction Device High Speed 2$

Touch Screen,Computer,Cellphone

DALA F4010-K can be managed by computer ,cellphone and Touch screen,like parameter setting ,measurement data management ,

and so on,customers can choose as their application request.
$4 Axis Laser Caliper Diameter Gauge Diffraction Device High Speed 3$

Technical Specification

Model	F4010-K
Axis	4-axis
Measurement data	diameter and ovality, lump and necks
Frequency	40KHz
Measurement range	0.3~10mm
Repeatability⁽¹⁾	±0.2μm
Accuracy⁽²⁾	diameter accuracy:±(0.001+0.01%D)mm ovality accuracy: ＜0.5mm:±0.004mm ≥0.5mm: ±2(0.001+0.01%D)mm
Min defect height	0.01mm
Min defect length⁽³⁾	0.2mm(wire speed120m/min) 0.8mm(wire speed500m/min)
Size	27524260mm
Working power source	24V ±10% 40VA
Running temperature	5℃~50℃
Display	LED display
Commuincation port	Standard:WIFI,RS485 MODBUS RTU,CAN Option:PROFIBUS,PROFINET, EtherNet/IP,EtherCAT
Electrical port	Standard: digital output(relay),digital input,analog input,encoder pulse input port Option:PI feedback control ⁽⁴⁾
Data colletion & analysis	available (option DS14 ZT display and control system,DMS1000)
Out-of-tolerance alarm	available
Transparent mode	available

Note:

(1) set sliding window as 100ms, outside diameter repeatability of φ1mm round rod at measurement center area

(2) set sliding window as 100ms, outside diameter deviation of φ1mm round rod at measurement area

(3) set defect measurement average time as 0ms, the minimum defect length which cannot be missed at the measurable area

(4) PI feedback control is option, but must order at placing order
