Product Details
Place of Origin: CHINA
Brand Name: Screate DALA
Certification: CE
Model Number: F2010-S
Payment & Shipping Terms
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: standard packing, as customer demands
Delivery Time: 7 - 15 working Days
Payment Terms: T/T, etc.
Measurement Data: |
Diameter & Ovality |
Application: |
Electric Wire&cable, Steel Wire ,enamelled Copper Wire, Etc. |
Measurement: |
0.2~10mm |
Repeatability: |
±0.1μm |
Accuracy: |
±（0.0005+0.01%*D)mm |
Size: |
155*140*58mm |
Working Power Source: |
24V ±10% 40VA |
Communication: |
Standard：WIFI、RS485 MODBUS RTU、CAN |
Measurement Data: |
Diameter & Ovality |
Application: |
Electric Wire&cable, Steel Wire ,enamelled Copper Wire, Etc. |
Measurement: |
0.2~10mm |
Repeatability: |
±0.1μm |
Accuracy: |
±（0.0005+0.01%*D)mm |
Size: |
155*140*58mm |
Working Power Source: |
24V ±10% 40VA |
Communication: |
Standard：WIFI、RS485 MODBUS RTU、CAN |

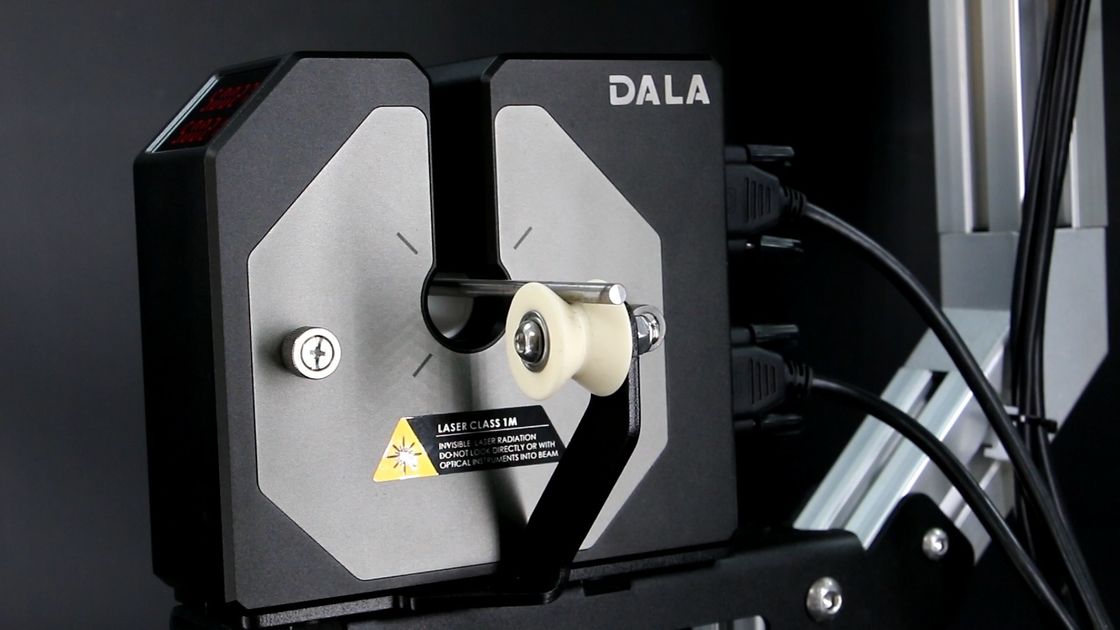

DALA F2010-s can be managed by computer ,cellphone and touch screen,like parameter setting ,measurement data management ,
and so on.
| Model | F2010-S |
|---|---|
| Axis | 2-axis |
| Measurement data | diameter and ovality |
| Frequency | 1000Hz/axis |
| Measurement range | 0.2~10mm |
| Repeatability(1) | ±0.1μm |
| Accuracy(2) | ±(0.0005+0.01%*D)mm |
| Size | 155*140*58mm |
| Working power source | 24V ±10% 40VA |
| Running temperature | 5℃~50℃ |
| Display | LED display |
| Commuincation port | Standard:WIFI,RS485 MODBUS RTU,CAN |
| Data colletion & analysis | available (option DS14 ZT display and control system,DMS1000) |
| Out-of-tolerance alarm | available |
| Transparent mode | available |
Note:
(1) set sliding window as 100ms, outside diameter repeatability of φ1mm round rod at measurement center area;
(2) set sliding window as 100ms, outside diameter deviation of φ1mm round rod at measurement area;
(3) PI feedback control is option, but must order at placing order
