Product Details
Place of Origin: CHINA
Brand Name: Screate DALA
Model Number: DM300
Payment & Shipping Terms
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: standard packing, as customer demands
Delivery Time: 7 - 15 working Days
Payment Terms: T/T, etc.
Measurement Data: |
Diameter ,ovality, Bearing Length , Reduction Cone,etc. |
Application: |
Drawing Die |
Maximum Die External Diameter: |
70mm |
Maximum Die Height: |
45mm |
Bearing Length Range: |
0-70% |
Working Power Source: |
DC36V 6.1A |
Reduction Cone Angle: |
0-32° |
Measurement Data: |
Diameter ,ovality, Bearing Length , Reduction Cone,etc. |
Application: |
Drawing Die |
Maximum Die External Diameter: |
70mm |
Maximum Die Height: |
45mm |
Bearing Length Range: |
0-70% |
Working Power Source: |
DC36V 6.1A |
Reduction Cone Angle: |
0-32° |

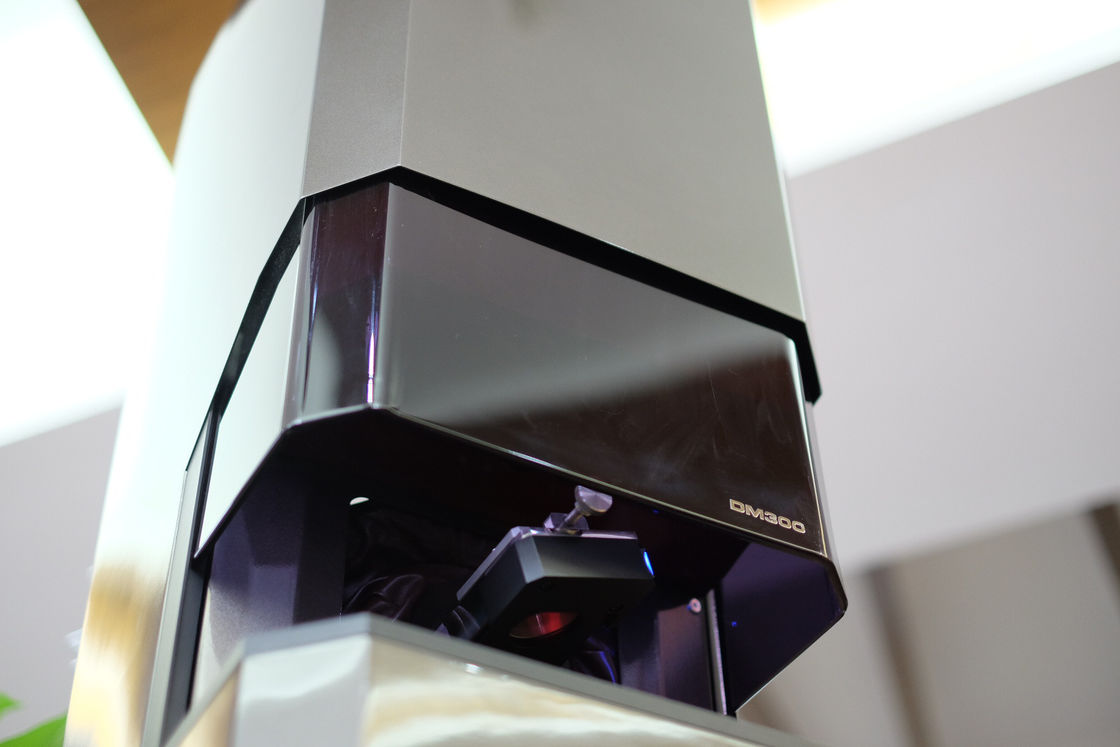

The DM300 is DALA's premium series for 3D die profile measurement, incorporating the latest advancements in optical imaging technology. These devices are specifically designed to measure bearing length, reduction cone, and diameter with precision.
Operators can conveniently monitor the die surface on-screen, identifying potential issues like breakage or dust. The robust visibility of the result display area enables effortless data verification even from a distance, ensuring seamless operational oversight.
| Objectives | 2D measurement range | 3D measurement range |
|---|---|---|
| 20X | 0.015~0.060mm(0.00059~0.0024 inch) | 0.020~0.030mm(0.00079~0.00118 inch) |
| 10x | 0.030~0.450mm(0.00118~0.0177 inch) | 0.030~0.110mm(0.00118~0.0043 inch) |
| 3X | 0.110~1.600mm(0.0044~0.0630 inch) | 0.110~0.800mm(0.0043~0.0315 inch) |
| 1X | 0.350~5.000mm(0.0138~0.1969 inch) | 0.400~4.500mm(0.0157~0.1772 inch) |
| 0.5X | 0.70~10.000mm(0.02756~0.3937 inch) | 0.800~9.000mm(0.0315~0.3543 inch) |
| 0.25X | 1.00~20.00mm(0.03937~0.78740inch) | 2.00~20.00mm(0.0787~0.78740inch) |
| 0.1X | 4.00~45.000mm(0.15748~1.7716inch) | 8.000~45.000mm(0.31496~1.7716inch) |
For more information , please contact us
