OEM Drawing Die Ovality Checking Gauge Size Measurement tool

Name: OEM Drawing Die Ovality Checking Gauge Size Measurement tool
Brand: Screate DALA
SKU: DM80
Rating: 4.8 (200 reviews)

Product Details

Place of Origin: CHINA

Brand Name: Screate DALA

Model Number: DM80

Payment & Shipping Terms

Minimum Order Quantity: Negotiable

Price: Negotiable

Packaging Details: standard packing, as customer demands

Delivery Time: 7 - 15 working Days

Payment Terms: T/T, etc.

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                            OEM ovality checking gauge, Drawing Die ovality checking gauge, Drawing Die ovality gauge


Measurement Data:	Diameter ,ovality	Application:	Drawing Die
Maximum Die External Diameter:	160mm	Maximum Die Height:	75mm
Maximum Die Weight:	10kg	Working Power Source:	DC 24V 3.75A
Gross Weight:	23kg

Measurement Data:	Diameter ,ovality
Application:	Drawing Die
Maximum Die External Diameter:	160mm
Maximum Die Height:	75mm
Maximum Die Weight:	10kg
Working Power Source:	DC 24V 3.75A
Gross Weight:	23kg

Description

OEM Drawing Die Ovality Checking Gauge Size Measurement tool

Wire Drawing Die Real-time Measurement

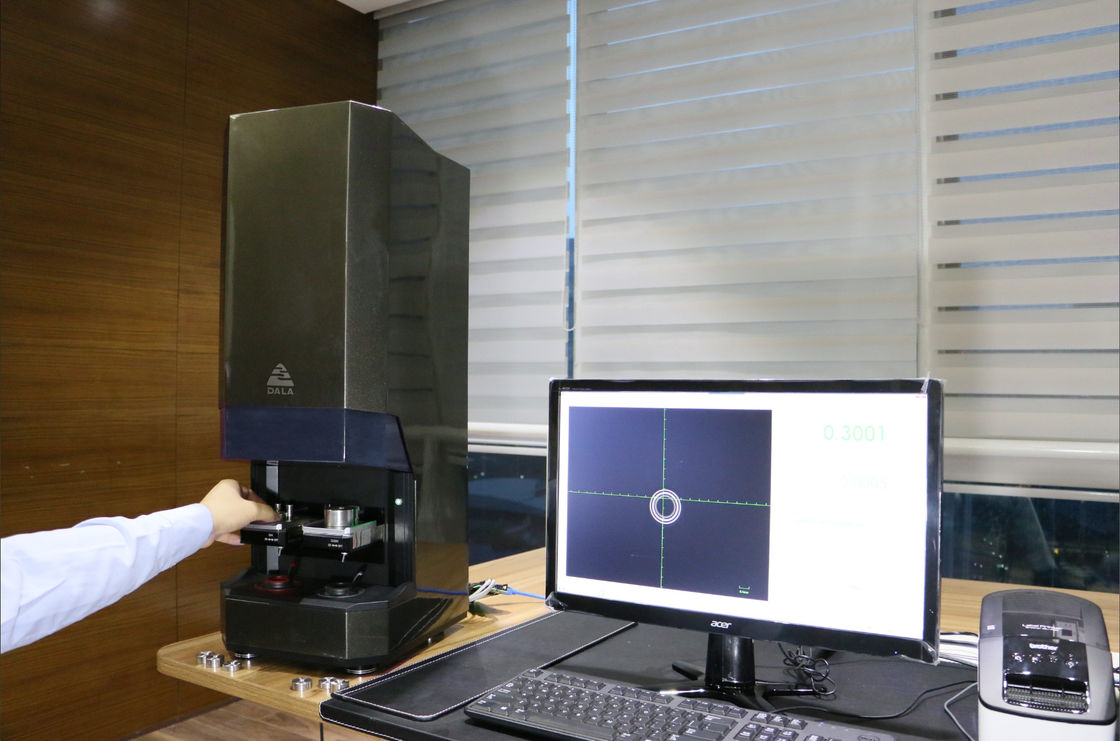

DM80 is the first real-time wire drawing die bore and ovality measuring instrument in the world. The instrument is developed with the cutting-edge optical imaging technique,

provides easy to use, high precise measuring and no production halts for a great productivity.

Visualized System

Operator can monitor the surface of Dies (such as breakage, dust) on screen.
Powerful visibility of result displaying area makes it possible to check data at a distance.

OEM Drawing Die Ovality Checking Gauge Size Measurement tool 1

Accuracy

SCreate DALA's patented software and exclusive optical imaging system, offers high repeatability and accurate measurement during die flipping, rotating, or brightness change.

Designed with large depth of focus (DOF) and space compensate programming, the results can be accurate measured even bearing zone locate at different heights.

OEM Drawing Die Ovality Checking Gauge Size Measurement tool 2

OEM Drawing Die Ovality Checking Gauge Size Measurement tool 3

Parameters

Objectives	2D measurement range
20X	0.015~0.060mm(0.00059~0.0024 inch)
10x	0.035~0.450mm(0.00138~0.0177 inch)
3X	0.110~1.600mm(0.0044~0.0630 inch)
1X	0.350~5.000mm(0.0138~0.1969 inch)
0.5X	0.70~10.000mm(0.02756~0.3937 inch)
0.25X	1.00~20.00mm(0.03937~0.78740inch)
0.1X	4.00~45.000mm(0.15748~1.7716inch)

For more information , please contact us
