Product Details
Place of Origin: CHINA
Brand Name: Screate DALA
Model Number: DM500S
Payment & Shipping Terms
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: standard packing, as customer demands
Delivery Time: 7 - 15 working Days
Payment Terms: T/T, etc.
Measurement Data: |
Diameter ,ovality, Reduce Cone Angle |
Application: |
Drawing Die |
Maximum Die External Diameter: |
70mm |
Maximum Die Height: |
45mm |
Bearing Length Range: |
0-70% |
Working Power Source: |
DC36V 6.1A |
Reduction Cone Angle: |
0-32° |
Measurement Data: |
Diameter ,ovality, Reduce Cone Angle |
Application: |
Drawing Die |
Maximum Die External Diameter: |
70mm |
Maximum Die Height: |
45mm |
Bearing Length Range: |
0-70% |
Working Power Source: |
DC36V 6.1A |
Reduction Cone Angle: |
0-32° |

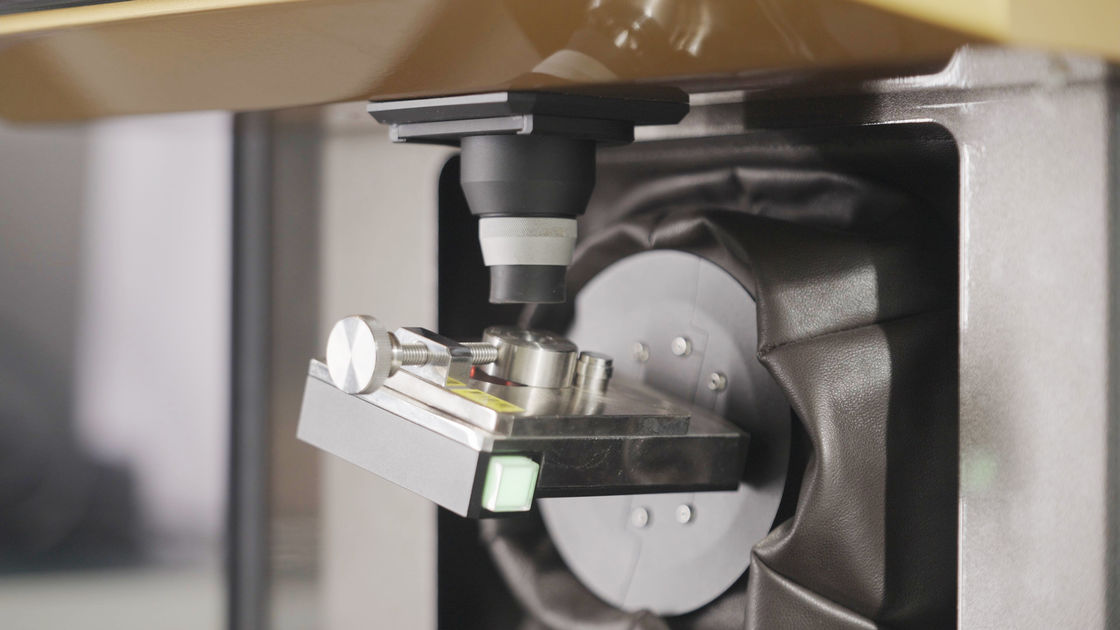

The DM500S stands as DALA's pinnacle in 3D die profile measurement series, engineered with state-of-the-art optical imaging technology.
| Objectives | 2D measurement range | 3D measurement range |
|---|---|---|
| 20X | 0.015~0.060mm(0.00059~0.0024 inch) | 0.020~0.030mm(0.00079~0.00118 inch) |
| 10x | 0.030~0.450mm(0.00118~0.0177 inch) | 0.030~0.110mm(0.00118~0.0043 inch) |
| 3X | 0.110~1.600mm(0.0044~0.0630 inch) | 0.110~0.800mm(0.0043~0.0315 inch) |
| 1X | 0.350~5.000mm(0.0138~0.1969 inch) | 0.400~4.500mm(0.0157~0.1772 inch) |
| 0.5X | 0.70~10.000mm(0.02756~0.3937 inch) | 0.800~9.000mm(0.0315~0.3543 inch) |
| 0.25X | 1.00~20.00mm(0.03937~0.78740inch) | 2.00~20.00mm(0.0787~0.78740inch) |
| 0.1X | 4.00~45.000mm(0.15748~1.7716inch) | 8.000~45.000mm(0.31496~1.7716inch) |
For more information , please contact us
