Custom Realtime Drawing Die Measurement Device 24V

Name: Custom Realtime Drawing Die Measurement Device 24V
Brand: SCreate Dala Technology Co., Ltd.
SKU: DM100
Availability: InStock

Product Details

Place of Origin: CHINA

Brand Name: Screate DALA

Model Number: DM100

Payment & Shipping Terms

Minimum Order Quantity: Negotiable

Price: Negotiable

Packaging Details: standard packing, as customer demands

Delivery Time: 7 - 15 working Days

Payment Terms: T/T, etc.

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                            Custom Drawing Die Measurement, 24V Drawing Die Measurement, Die Measurement Device


Measurement Data:	Diameter ,ovality	Application:	Drawing Die
Maximum Die External Diameter:	160mm	Maximum Die Height:	75mm
Maximum Die Weight:	10kg	Working Power Source:	DC 24V 3.75A
Gross Weight:	23kg

Measurement Data:	Diameter ,ovality
Application:	Drawing Die
Maximum Die External Diameter:	160mm
Maximum Die Height:	75mm
Maximum Die Weight:	10kg
Working Power Source:	DC 24V 3.75A
Gross Weight:	23kg

Description

Custom Realtime Drawing Die Measurement Device 24V

Wire Drawing Die Real-time Measurement

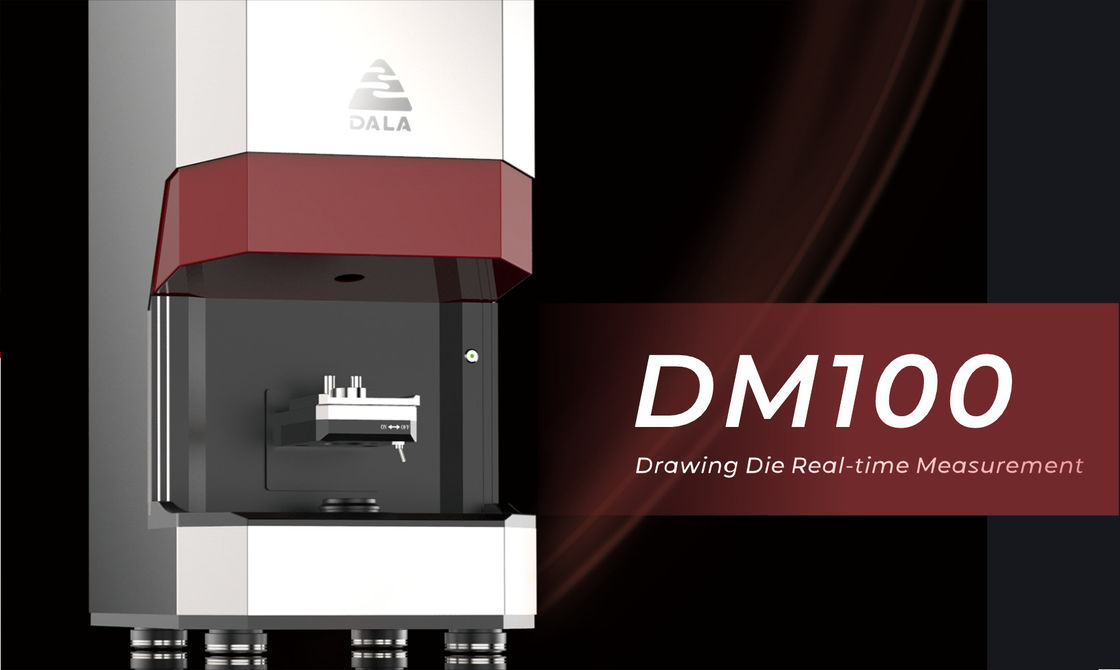

DM100 is the first real-time wire drawing die bore and ovality measuring instrument in the world. The instrument is developed with the cutting-edge optical imaging technique,

provides easy to use, high precise measuring and no production halts for a great productivity.

Visualized System

Operator can monitor the surface of Dies (such as breakage, dust) on screen.
Powerful visibility of result displaying area makes it possible to check data at a distance.

Custom Realtime Drawing Die Measurement Device 24V 1

Accuracy

SCreate DALA's patented software and exclusive optical imaging system, offers high repeatability and accurate measurement during die flipping, rotating, or brightness change.

Designed with large depth of focus (DOF) and space compensate programming, the results can be accurate measured even bearing zone locate at different heights.

Custom Realtime Drawing Die Measurement Device 24V 2

Custom Realtime Drawing Die Measurement Device 24V 3

Parameters

Objectives	2D measurement range
20X	0.015~0.060mm(0.00059~0.0024 inch)
10x	0.035~0.450mm(0.00138~0.0177 inch)
3X	0.110~1.600mm(0.0044~0.0630 inch)
1X	0.350~5.000mm(0.0138~0.1969 inch)
0.5X	0.70~10.000mm(0.02756~0.3937 inch)
0.25X	1.00~20.00mm(0.03937~0.78740inch)
0.1X	4.00~45.000mm(0.15748~1.7716inch)

For more information , please contact us
