2Axis Portable Optical Micrometer Cable Diameter Gauge Electric Wire Cable

Name: 2Axis Portable Optical Micrometer Cable Diameter Gauge Electric Wire Cable
Brand: Screate DALA
SKU: F10-XY
Rating: 4.9 (172 reviews)

Product Details

Place of Origin: CHINA

Brand Name: Screate DALA

Model Number: F10-XY

Payment & Shipping Terms

Minimum Order Quantity: Negotiable

Price: Negotiable

Packaging Details: standard packing, as customer demands

Delivery Time: 7 - 15 working Days

Payment Terms: T/T, etc.

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                    2Axis Optical Micrometer, Cable Diameter Optical Micrometer, Cable Diameter portable micrometer


Measurement Data:	Diameter And Ovality	Application:	Electric Wire&cable, Steel Wire ,enamelled Copper Wire, Etc.
Measurement:	0.2~10mm	Repeatability:	±0.1μm
Accuracy:	±（0.0005+0.01%*D)mm	Size:	15514058mm
Working Power Source:	24V ±10% 40VA	Communication:	Digital Output(relay),digital Input,analog Input,encoder Pulse Input Port

Measurement Data:	Diameter And Ovality
Application:	Electric Wire&cable, Steel Wire ,enamelled Copper Wire, Etc.
Measurement:	0.2~10mm
Repeatability:	±0.1μm
Accuracy:	±（0.0005+0.01%*D)mm
Size:	15514058mm
Working Power Source:	24V ±10% 40VA
Communication:	Digital Output(relay),digital Input,analog Input,encoder Pulse Input Port

Description

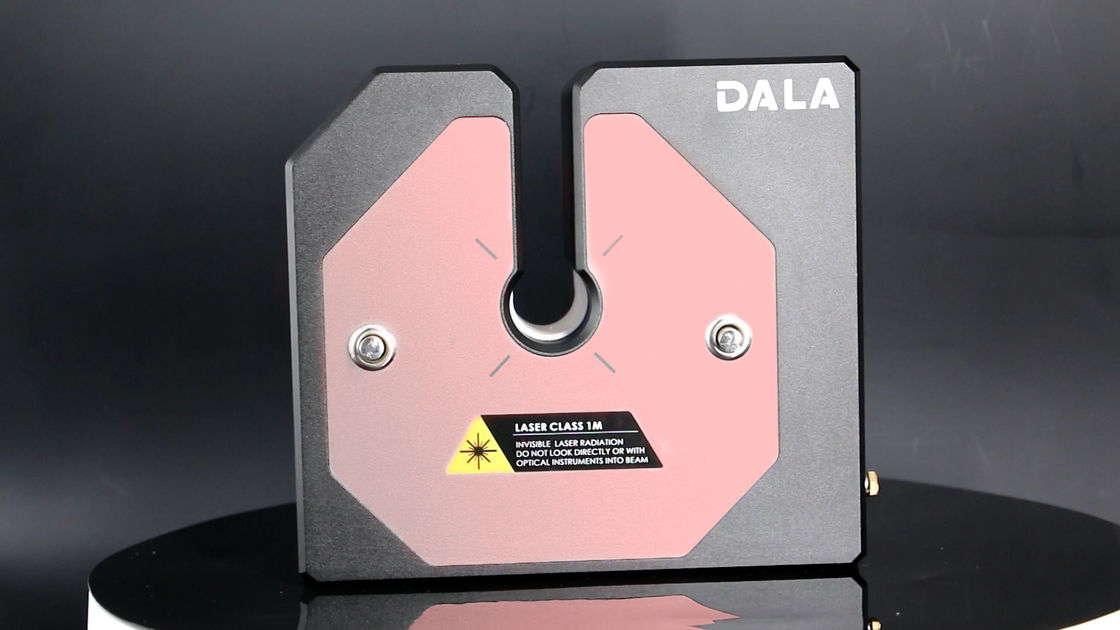

2Axis Portable Optical Micrometer Cable Diameter Gauge Electric Wire Cable

Simple Structure, Long Durability

F10-XY utilizes the laser diffraction measurement method, which offers two primary features: high accuracy and a simple structure.

Its compact and straightforward design ensures easy maintenance.

The measurement repeatability can reach up to ±0.1μm.

This series is well-suited for measuring various materials, including electrical and steel wires, enameled copper wires, medical tubing, 3D printing filaments, as well as both clear and opaque objects.

2Axis Portable Optical Micrometer Cable Diameter Gauge Electric Wire Cable 0

Extremely short exposure time of 1.1us

Featuring an incredibly short exposure time, F10-XY excels at capturing object images without any blur or shadow, ensuring precise measurement accuracy.

2Axis Portable Optical Micrometer Cable Diameter Gauge Electric Wire Cable 1

Touch Screen,Computer,Cellphone

The DALA F10-XY can be controlled via computer, cellphone, or touch screen, allowing for tasks such as parameter setting and measurement data management.

2Axis Portable Optical Micrometer Cable Diameter Gauge Electric Wire Cable 2

Technical Specification

Model	F10-XY
Axis	2-axis
Measurement data	diameter and ovality
Frequency	500Hz/axis
Measurement range	0.2~10mm
Repeatability⁽¹⁾	±0.1μm
Accuracy⁽²⁾	±(0.0005+0.01%*D)mm
Size	15514058mm
Working power source	24V ±10% 40VA
Running temperature	5℃~50℃
Display	LED display
Commuincation port	Standard:WIFI,RS485 MODBUS RTU,CAN Option:PROFIBUS,PROFINET, EtherNet/IP,EtherCAT
Electrical port	Standard: digital output(relay),digital input,analog input,encoder pulse input port Option:PI feedback control ,analog output⁽³⁾
Data colletion & analysis	available (option DS14 ZT display and control system,DMS1000)
Out-of-tolerance alarm	available
Transparent mode	available

Note:

(1) set sliding window as 100ms, outside diameter repeatability of φ1mm round rod at measurement center area

(2) set sliding window as 100ms, outside diameter deviation of φ1mm round rod at measurement area

(3) PI feedback control is option, but must order at placing order
