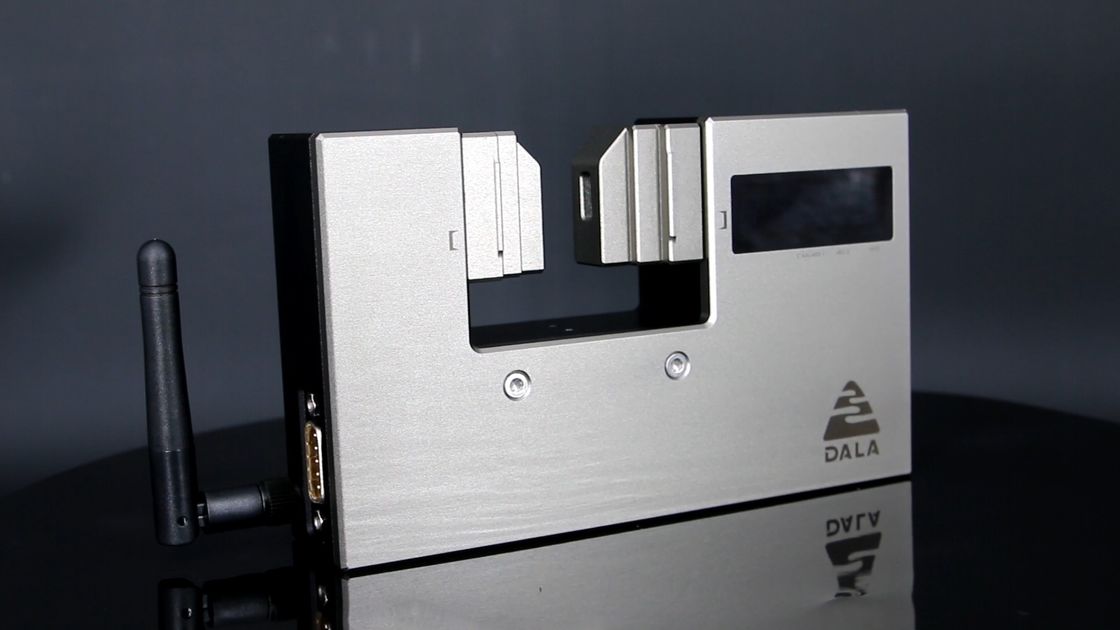

Customized Ovality Gauge Handheld Laser Micrometer Diameter device

Product Details

Place of Origin: CHINA

Brand Name: Screate DALA

Model Number: N3

Payment & Shipping Terms

Minimum Order Quantity: Negotiable

Price: Negotiable

Packaging Details: standard packing, as customer demands

Delivery Time: 7 - 15 working Days

Payment Terms: T/T, etc.

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                    Customized ovality gauge, ovality gauge Micrometer, Customized handheld laser micrometer


Measurement Data:	Diameter	Application:	Fine Wire
Measurement:	0.015~1mm	Repeatability:	±0.05μm
Accuracy:	±（0.00012+0.03%*D)mm	Size:	1453488mm
Working Power Source:	24V ±10% 40VA	Communication:	RS485(Mod Bus RTU)，CAN(CAN Open)，WIFI(for Data Debugging)

Measurement Data:	Diameter
Application:	Fine Wire
Measurement:	0.015~1mm
Repeatability:	±0.05μm
Accuracy:	±（0.00012+0.03%*D)mm
Size:	1453488mm
Working Power Source:	24V ±10% 40VA
Communication:	RS485(Mod Bus RTU)，CAN(CAN Open)，WIFI(for Data Debugging)

Description

Customized Ovality Gauge Handheld Laser Micrometer Diameter device

Technology of High Accuracyand Long Durability

N3 fine wire laser micrometer series adopt laser diffraction measurement method. It has two main characteristics: simple structure, high accuracy.

There is no motor inside, besides, the smart size and simple structure allows easy maintenance work at the later stage.

For fine wire measurement, the smaller the wire ,the more precision of the repeatability. which can reach to ±0.05um.

It is applicable to the measurement of various fine copper wires, enamelled copper wire,,tungsten wire and steel wire.,etc.

Maintenance free

Due to no motor diffraction technology , there is no maintenance or replacement for the motor, greatly simplify maintenance.

Customized Ovality Gauge Handheld Laser Micrometer Diameter device 1

Application

Customized Ovality Gauge Handheld Laser Micrometer Diameter device 2

Touch Screen,Computer,Cellphone

DALA N3 can be managed by computer and cellphone,like parameter setting ,measurement data management ,and so on,
customers can choose as their application request.
Customized Ovality Gauge Handheld Laser Micrometer Diameter device 3

Technical Specification

Model	N3
Axis	1-axis
Measurement data	diameter
Measurement range	0.015~1mm
Repeatability	±0.05μm
Accuracy	±(0.00012+0.03%*D)mm
Size	1453488mm
Working power source	24V ±10% 40VA
Running temperature	5℃~50℃
Display	LED display
Commuincation port	RS485(Mod bus RTU),CAN(CAN open),WIFI(for data debugging)
Data colletion & analysis	available(DMS1000)
Out-of-tolerance alarm	available
Far-end display function	available
