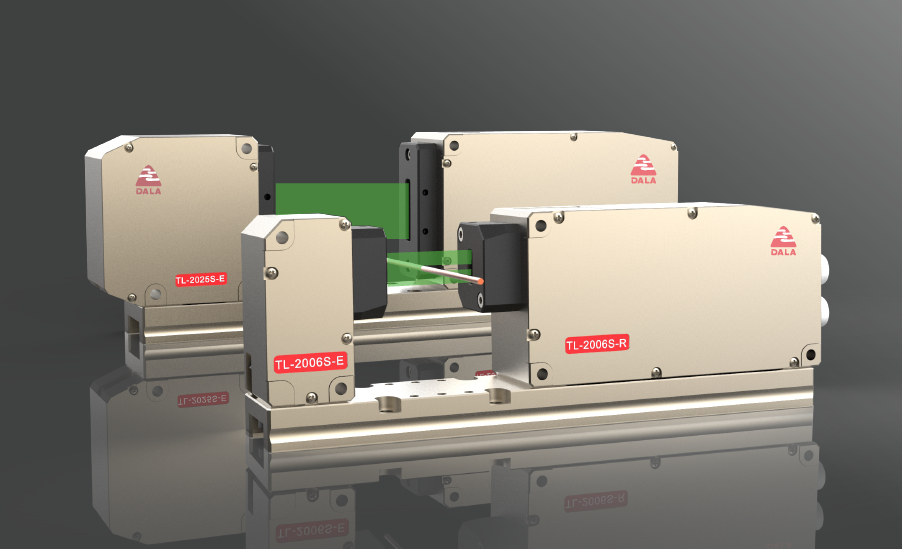

Flat Wire Single Axis Laser Micrometer Diameter Lump And Neck Measuring

Name: Flat Wire Single Axis Laser Micrometer Diameter Lump And Neck Measuring
Brand: SCreate Dala Technology Co., Ltd.
SKU: TL-2000S
Availability: InStock

Product Details

Place of Origin: CHINA

Brand Name: Screate DALA

Model Number: TL-2000S

Payment & Shipping Terms

Minimum Order Quantity: Negotiable

Price: Negotiable

Packaging Details: standard packing, as customer demands

Delivery Time: 7 - 15 working Days

Payment Terms: T/T, etc.

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                    Single Axis Laser Micrometer Diameter, Lump Neck Measuring Micrometer Diameter


Measurement Data:	Lump And Neck Or Diameter	Application:	Flat Wire，round Wire
Measurement:	0.02~6mm & 0.2~25mm	Repeatability:	±0.03um
Accuracy:	±0.5um	Size:	224.63662mm
Working Power Source:	24VDC ± 5%, Max. 30W	Communication:	WIFI,RS485 MODBUS RTU

Measurement Data:	Lump And Neck Or Diameter
Application:	Flat Wire，round Wire
Measurement:	0.02~6mm & 0.2~25mm
Repeatability:	±0.03um
Accuracy:	±0.5um
Size:	224.63662mm
Working Power Source:	24VDC ± 5%, Max. 30W
Communication:	WIFI,RS485 MODBUS RTU

Description

Flat Wire Single Axis Laser Micrometer Diameter Lump And Neck Measuring

High Impact Resistance,Strong adaptability to temperature change

Unique mechanical design enables the device with an impact resistance of 10G/6ms and vibration resistance of 10-55Hz/1.5mm in XYZ for 2 hours.

Individual temperature compensation technology enables the device measurement results not to be afected by temperature change*.

*The measurement diameter change <0.00lmm when temperature change is 40'℃ if the object diameter is 10mm.

Measurement is accurate even if there is water and dust

Thanks to individual optical system and measurement algorithm, the measurement data of TL-2000S Series is still accurate at complex environment.

Environmental adaptability reaches to IP67.Besides,air filter is available to prevent lens front side from contamination ,ensuring measurement data is accurate at various extremely complex environment.

Touch Screen,Computer,Cellphone

DALA TL-2025D can be managed by touch screen,computer and cellphone,like parameter setting ,measurement data management ,and so on,customers can choose as their application request.

Flat Wire Single Axis Laser Micrometer Diameter Lump And Neck Measuring 2

size

Flat Wire Single Axis Laser Micrometer Diameter Lump And Neck Measuring 3

Flat Wire Single Axis Laser Micrometer Diameter Lump And Neck Measuring 4

Technical Specification

Model	TL-2006S		TL-2025S
Axis	1-axis		1-axis
Sampling frequency	5KHz		10KHz
Measurement range	0.02~6mm		0.2~25mm
Repeatability	±0.03μm⁽¹⁾		±0.1μm⁽²⁾
Measurement accuracy	±0.5μm⁽³⁾		±3μm⁽⁴⁾
Working power	24VDC ± 5%, Max. 30W
Application field	Round wire ,Transparent wire, Flat wire
Measurement data	Round wire, clear wire, flat wire,rod stock, tubing, etc.
Communication port	Default:WIFI,RS485 MODBUS RTU,CAN Option:PROFIBUS,PROFINET, EtherNet/IP EtherNet,etc.
Electrical port	Default:Digital output (relay), Digital input,Analog input encoder pulse input port. Option: PI feedback control⁽³⁾
Environmental adaptability	Working Environment	0~50 ℃
	Working Environment	20~85%RH(No condensation)
	Working environmental brightness	Brightness of working environment Incandescent light, fluorescent lamp 3000lx or less
	Vibrating resistance	10~55Hz full amplitude 1.5mm in XYZ direction for 2 hours
	Impact resistance	10G/6ms
Data colletion & analysis	DMS1000 measurement software system,DS14 ZT display and control system
Out-of-tolerance alarm	Support
Transparent mode	Support
Water-proof grade	IP67

NOTE:

(1)Set average time to 0.1s and measure the ±2σvalue of the φ1mm round rod at the measurement area center;

(2)Set average time to 0.1s and measure the ±2σvalue of the φ10mm round rod at the measurement area center;

(3)Move φ1mm round rod in the measurement area of 2*2mm and conduct measurement error;

(4)Move φ9mm round rod in the measurement area of8*8mm and conduct measurement error;Move φ18mm round rod in the measurement area of4*4mm and conduct measurement error;
