Product Details
Place of Origin: CHINA
Brand Name: Screate DALA

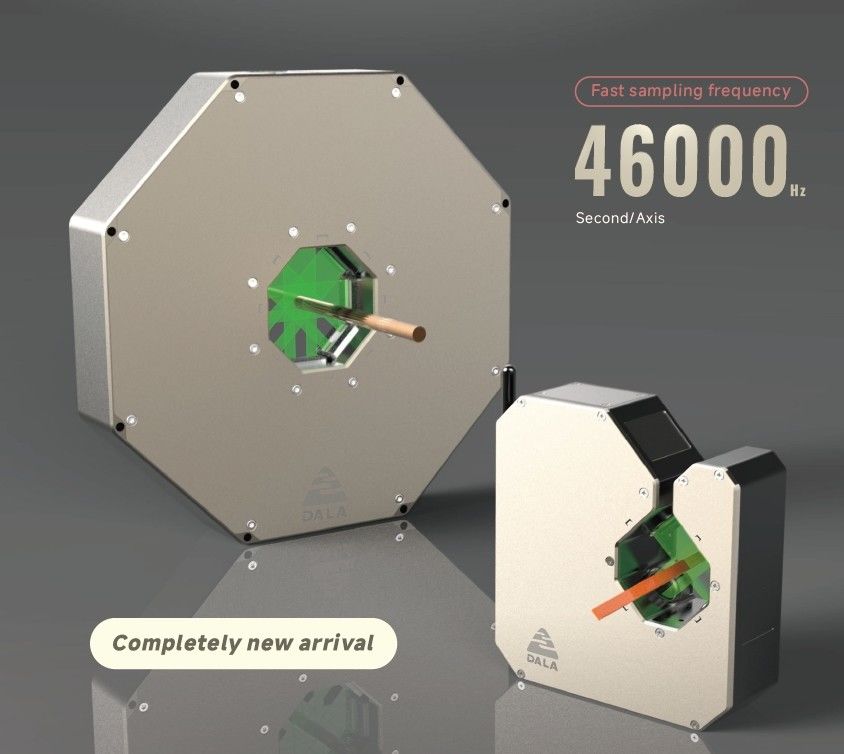

Model Number: TL-3000 Series
Payment & Shipping Terms
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: standard packing, as customer demands
Delivery Time: 7 - 15 working Days
Payment Terms: T/T, etc.
Measurement Data: |
Diameter, Ovality, Width ,thickness ,lumps And Necks |
Application: |
Round Wire, Flat Wire, Transparent Wire, Hose And Bar Etc. |
Measurement: |
0.03~120mm |
Working Power Source: |
24V ±10% 40VA |
Communication: |
WIFI,RS485 MODBUS RTU,CAN,PROFINET,PROFIBUS,ETHERNET IP |
Measurement Data: |
Diameter, Ovality, Width ,thickness ,lumps And Necks |
Application: |
Round Wire, Flat Wire, Transparent Wire, Hose And Bar Etc. |
Measurement: |
0.03~120mm |
Working Power Source: |
24V ±10% 40VA |
Communication: |
WIFI,RS485 MODBUS RTU,CAN,PROFINET,PROFIBUS,ETHERNET IP |
| Model | TL-3006D | TL-3025D | TL-3025Q | TL-3120D |
|---|---|---|---|---|
| Axis | 2-axis | 2-axis | 4-axis | 2-axis |
| Measurement range | 0.03~6mm | 0.2~25mm | 0.2~25mm | 0.8~120mm |
| Repeatability | ±0.03μm(1) | ±0.1μm(2) | ±0.1μm(2) | ±0.3μm(3) |
| Accuracy | ±0.5μm(4) | ±2μm(5) | ±2μm(5) | ±5μm(6) |
| Sampling frequency | 46KHz/Axis | 46KHz/Axis | 46KHz/Axis | 20KHz/Axis |
| Size(L*W*H) | 180*198*60mm | 270*296*60mm | 380*380*68mm | 507*492*65mm |
| Application | round wire, flat wire, transparent wire, hose and bar etc. | |||
| Measurement data | diameter, ovality, width ,thickness ,lumps and necks | |||
| Power supply | 24V ±5%,Max. 75W | |||
| Display | LED | |||
| Communication interface |
Standard:RS485 MODBUS RTU,CAN,WIFI Option:PROFIBUS,PROFINET,EtherNet/IP,EtherCAT,etc. |
|||
| Electrical port |
Default:Digital output (relay), Digital input,Analog input encoder pulse input port. Option: PI feedback control, Analog output(7) |
|||
| Environmental adaptability | Working Tem. | 0~50℃ | ||
| Working Env. | 20~85%RH(No condensation) | |||
| Brightness | incandescent light, fluorescent lamp 3000lx or less | |||
| Vibrating resistance | 10~55Hz full amplitude 1.5mm in XYZ direction for 2 hours | |||
| Impact resistance | 10G/6ms | |||
| IP grade | IP65 | |||
| Data collection analysis | DMS1000 measurement software system,DS14 ZT display and control system | |||
| Out-of-tolerance alar | Support | |||
| Transparent mode | Support | |||
NOTE:
(1)Set average number of times to 1150 and measure the ±2σ value of the round standard rod of diameter 10mm at the measurement area center.
(2)For object diameter of 10mm, the measurement accuracy is ±2um when it moves in the center of 8*8mm；
(3)PI feedback control and analog out options shall be ordered at placing device order.
(4) Move φ1mm round rod in the measurement area of 2*2mm and conduct measurement error;
(5) Move φ10mm round rod in the measurement area of 8*8mm and conduct measurement error;
(6) Move φ40mm round rod in the measurement area of 40*40mm and conduct measurement error;
(7) Industrial communication module and PI feedback control module is installed before ex-factory,so notify the demand before placing an order.
