Copper Wire Dual Axis Laser Micrometer Ovality Diameter Gauges

Name: Copper Wire Dual Axis Laser Micrometer Ovality Diameter Gauges
Brand: Screate DALA
SKU: F10-XY
Rating: 5 (179 reviews)

Product Details

Place of Origin: CHINA

Brand Name: Screate DALA

Model Number: F10-XY

Payment & Shipping Terms

Minimum Order Quantity: Negotiable

Price: Negotiable

Packaging Details: standard packing, as customer demands

Delivery Time: 7 - 15 working Days

Payment Terms: T/T, etc.

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                    Copper Wire Dual Axis Laser Micrometer, Dual Axis Laser Micrometer Gauges, Copper Wire laser diameter gauges


Measurement Data:	Diameter And Ovality	Application:	Electric Wire&cable, Steel Wire ,enamelled Copper Wire, Etc.
Measurement:	0.2~10mm	Repeatability:	±0.1μm
Accuracy:	±（0.0005+0.01%*D)mm	Size:	15514058mm
Working Power Source:	24V ±10% 40VA	Communication:	Digital Output(relay),digital Input,analog Input,encoder Pulse Input Port

Measurement Data:	Diameter And Ovality
Application:	Electric Wire&cable, Steel Wire ,enamelled Copper Wire, Etc.
Measurement:	0.2~10mm
Repeatability:	±0.1μm
Accuracy:	±（0.0005+0.01%*D)mm
Size:	15514058mm
Working Power Source:	24V ±10% 40VA
Communication:	Digital Output(relay),digital Input,analog Input,encoder Pulse Input Port

Description

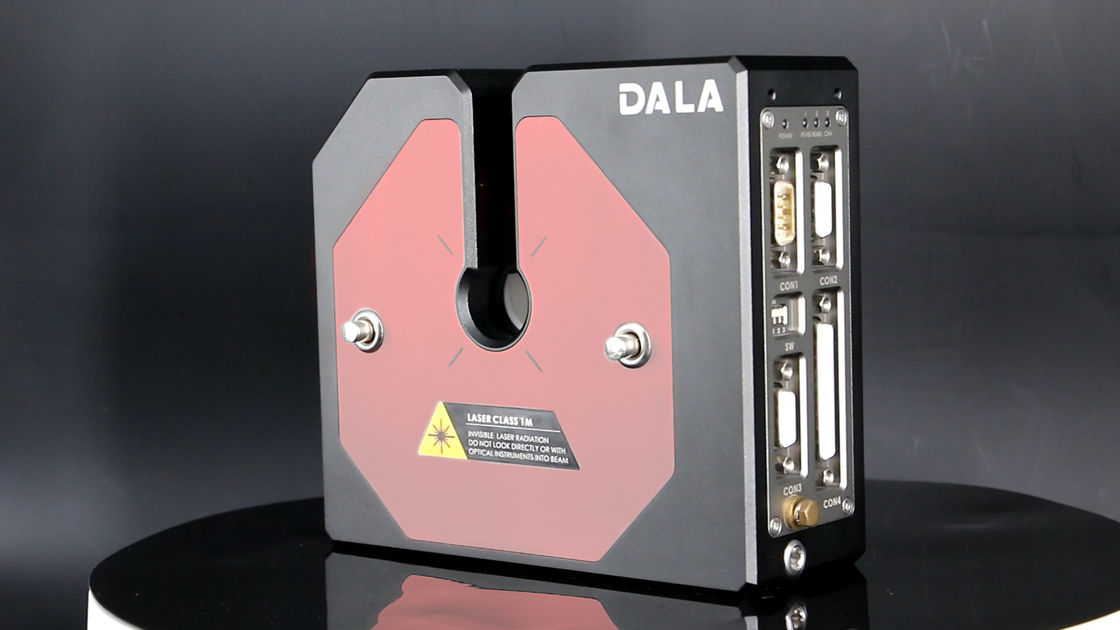

Copper Wire Dual Axis Laser Micrometer Ovality Diameter Gauges

Simple Structure, Long Durability

The F10-XY employs the laser diffraction measurement method, known for its high precision and simple design.

Its compact and straightforward design ensures easy maintenance.

This series is ideal for measuring a wide range of materials, such as enameled copper wires, electrical and steel wires, medical tubing, 3D printing filaments, and both transparent and opaque objects.

Copper Wire Dual Axis Laser Micrometer Ovality Diameter Gauges 0

Exposure time : 1.1us

With its remarkably brief exposure time, the F10-XY stands out for its ability to capture object images with exceptional clarity, guaranteeing precise measurement accuracy by eliminating any blur or shadow.

Copper Wire Dual Axis Laser Micrometer Ovality Diameter Gauges 1

Touch Screen,Computer,Cellphone

F10-XY can be controlled via computer, cellphone, or touch screen, allowing for tasks such as parameter setting and measurement data management.

Copper Wire Dual Axis Laser Micrometer Ovality Diameter Gauges 2

Technical Specification

Model	F10-XY
Axis	2-axis
Measurement data	diameter and ovality
Frequency	500Hz/axis
Measurement range	0.2~10mm
Repeatability⁽¹⁾	±0.1μm
Accuracy⁽²⁾	±(0.0005+0.01%*D)mm
Size	15514058mm
Working power source	24V ±10% 40VA
Running temperature	5℃~50℃
Display	LED display
Commuincation port	Standard:WIFI,RS485 MODBUS RTU,CAN Option:PROFIBUS,PROFINET, EtherNet/IP,EtherCAT
Electrical port	Standard: digital output(relay),digital input,analog input,encoder pulse input port Option:PI feedback control ,analog output⁽³⁾
Data colletion & analysis	available (option DS14 ZT display and control system,DMS1000)
Out-of-tolerance alarm	available
Transparent mode	available

Note:

(1) set sliding window as 100ms, outside diameter repeatability of φ1mm round rod at measurement center area

(2) set sliding window as 100ms, outside diameter deviation of φ1mm round rod at measurement area

(3) PI feedback control is option, but must order at placing order
