Product Details
Place of Origin: CHINA
Brand Name: Screate DALA

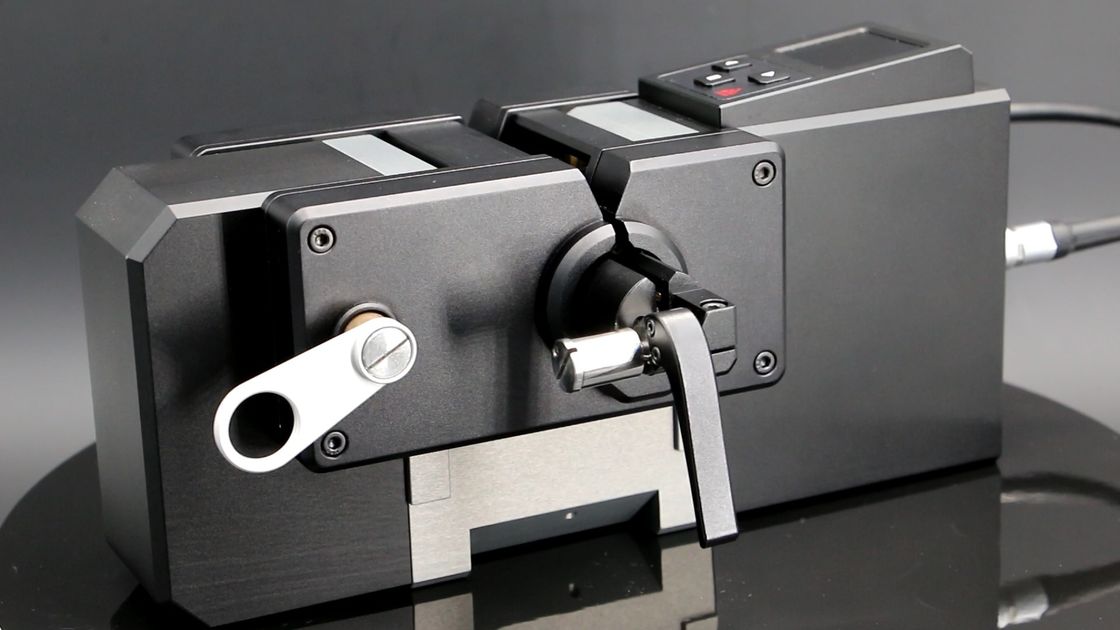

Model Number: D360
Payment & Shipping Terms
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: standard packing, as customer demands
Delivery Time: 7 - 15 working Days
Payment Terms: T/T, etc.
Measurement Data: |
Diameter & Ovality |
Application: |
Fine Wire |
Measurement: |
0.005~0.3mm, 0.015~1.0mm |
Repeatability: |
±0.01um |
Accuracy: |
±（0.00003+0.03%*D)mm |
Size: |
277*51*112.5mm(Without Rotation Lamping) |
Working Power Source: |
24V ±10% 40VA |
Communication: |
RS485 |
Measurement Data: |
Diameter & Ovality |
Application: |
Fine Wire |
Measurement: |
0.005~0.3mm, 0.015~1.0mm |
Repeatability: |
±0.01um |
Accuracy: |
±（0.00003+0.03%*D)mm |
Size: |
277*51*112.5mm(Without Rotation Lamping) |
Working Power Source: |
24V ±10% 40VA |
Communication: |
RS485 |
| Model |
D360-1003R(diameter&ovality) D360-1003(diameter) |
D360-101R(diameter&ovality) D360-101(diameter) |
|---|---|---|
| Axis | 1-axis | 1-axis |
| Measurement data | diameter,Ovality | diameter,Ovality |
| Measurement range | 0.005~0.3mm | 0.015~1.0mm |
| Repeatability | ±0.01um | ±0.04um |
| Accuracy | ±(0.00003+0.03%*D)mm | ±(0.0001+0.03%*D)mm |
| Size |
277*51*112.5mm(Without rotation lamping ) 277*185*112.5mm |
227*51*112.5mm(Without rotation lamping ) 227*185*112.5mm |
| Working power source | 24V ±10% 40VA | |
| Working temperature | 0℃~40℃ | |
| Storage temperature | 0℃~60℃ | |
| Relative humidity | Maximum 85%, no condensation | |
| Display | LCD display | |
| Commuincation port | RS485 | |
| Data colletion & analysis | Support | |
| Calibration method | automatic calibration | |
