Product Details
Place of Origin: CHINA
Brand Name: Screate DALA
Model Number: F30-XY
Payment & Shipping Terms
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: standard packing, as customer demands
Delivery Time: 7 - 15 working Days
Payment Terms: T/T, etc.
Measurement Data: |
Diameter And Ovality |
Application: |
Electric Wire&cable, Steel Wire And Tube, Pipe And Hoseetc. |
Measurement: |
0.5~30mm |
Repeatability: |
±0.2μm |
Accuracy: |
±（0.001+0.01%*D)mm |
Size: |
280*245*58mm |
Working Power Source: |
24V ±10% 40VA |
Communication: |
Standard：WIFI、RS485 MODBUS RTU、CAN |
Measurement Data: |
Diameter And Ovality |
Application: |
Electric Wire&cable, Steel Wire And Tube, Pipe And Hoseetc. |
Measurement: |
0.5~30mm |
Repeatability: |
±0.2μm |
Accuracy: |
±（0.001+0.01%*D)mm |
Size: |
280*245*58mm |
Working Power Source: |
24V ±10% 40VA |
Communication: |
Standard：WIFI、RS485 MODBUS RTU、CAN |

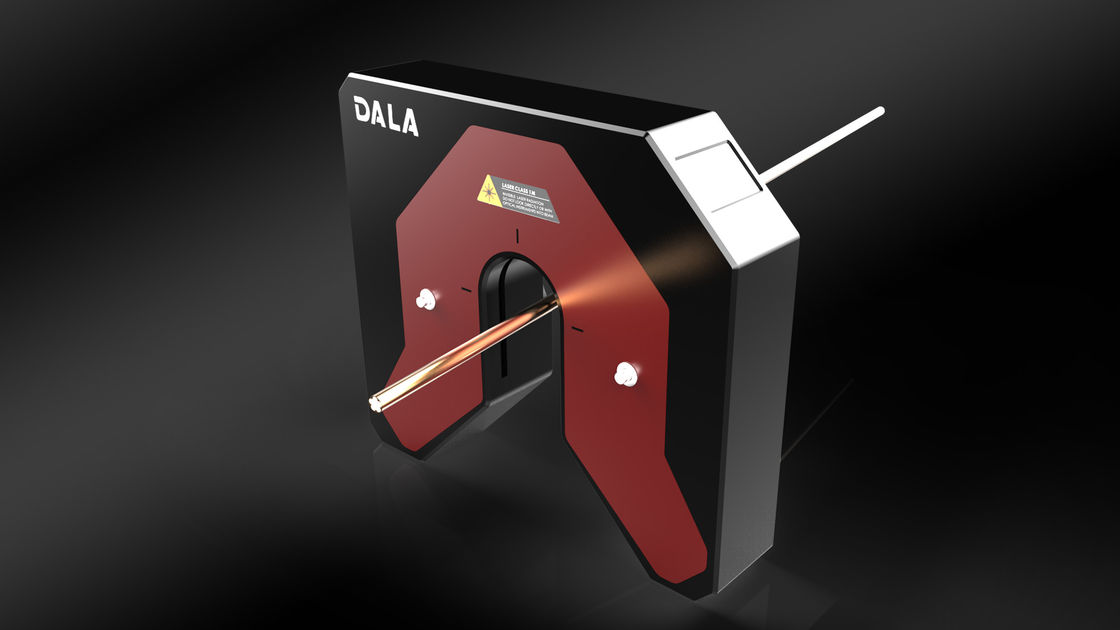

F2030-K series adopt laser diffraction measurement method. It has two main characteristics: simple structure, high accuracy.
It is applicable to the measurement electric wire&cable, steel wire ,PVC tube ,hosing .,etc. transparent and non-transparent object.
DALA F30-XY can be managed by computer ,cellphone and Touch screen,like parameter setting ,measurement data management , and so on.
| Model | F30-XY |
|---|---|
| Axis | 2-axis |
| Measurement data | diameter and ovality |
| Frequency | 500Hz/axis |
| Measurement range | 0.5~30mm |
| Repeatability(1) | ±0.2μm |
| Accuracy(2) | ±(0.001+0.01%*D)mm |
| Size | 280*245*58mm |
| Working power source | 24V ±10% 40VA |
| Running temperature | 5℃~50℃ |
| Display | LED display |
| Commuincation port |
Standard:RS485 MODBUS RTU,CAN |
| Electrical port | Standard: digital output(relay),digital input,analog input,encoder pulse input port Option:PI feedback control ,analog output(3) |
| Data colletion & analysis | available (option DS14 ZT display and control system,DMS1000) |
| Out-of-tolerance alarm | available |
| Transparent mode | available |
Note:
(1) set sliding window as 100ms, outside diameter repeatability of φ1mm round rod at measurement center area
(2) set sliding window as 100ms, outside diameter deviation of φ1mm round rod at measurement area
(3) PI feedback control is option, but must order at placing order
