Product Details
Place of Origin: CHINA
Brand Name: Screate DALA
Model Number: F4010-k
Payment & Shipping Terms
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: standard packing, as customer demands
Delivery Time: 7 - 15 working Days
Payment Terms: T/T, etc.
Measurement Data: |
Diameter And Ovality, Lump And Necks |
Application: |
Electric Wire&cable, Steel Wire ,enamelled Copper Wire, Etc. |
Measurement: |
0.3~10mm |
Repeatability: |
±0.2μm |
Frequency: |
10KHz/axis |
Size: |
275*242*60mm |
Working Power Source: |
24V ±10% 40VA |
Communication: |
WIFI,RS485 MODBUS RTU,CAN,PROFINET,PROFIBUS,ETHERNET IP |
Measurement Data: |
Diameter And Ovality, Lump And Necks |
Application: |
Electric Wire&cable, Steel Wire ,enamelled Copper Wire, Etc. |
Measurement: |
0.3~10mm |
Repeatability: |
±0.2μm |
Frequency: |
10KHz/axis |
Size: |
275*242*60mm |
Working Power Source: |
24V ±10% 40VA |
Communication: |
WIFI,RS485 MODBUS RTU,CAN,PROFINET,PROFIBUS,ETHERNET IP |
With a measurement repeatability of ±0.2um, F4010-k is versatile, applicable to various materials such as electric wire & cable, steel wire, enamelled copper wire, medical tubing, 3D filament, and so on.

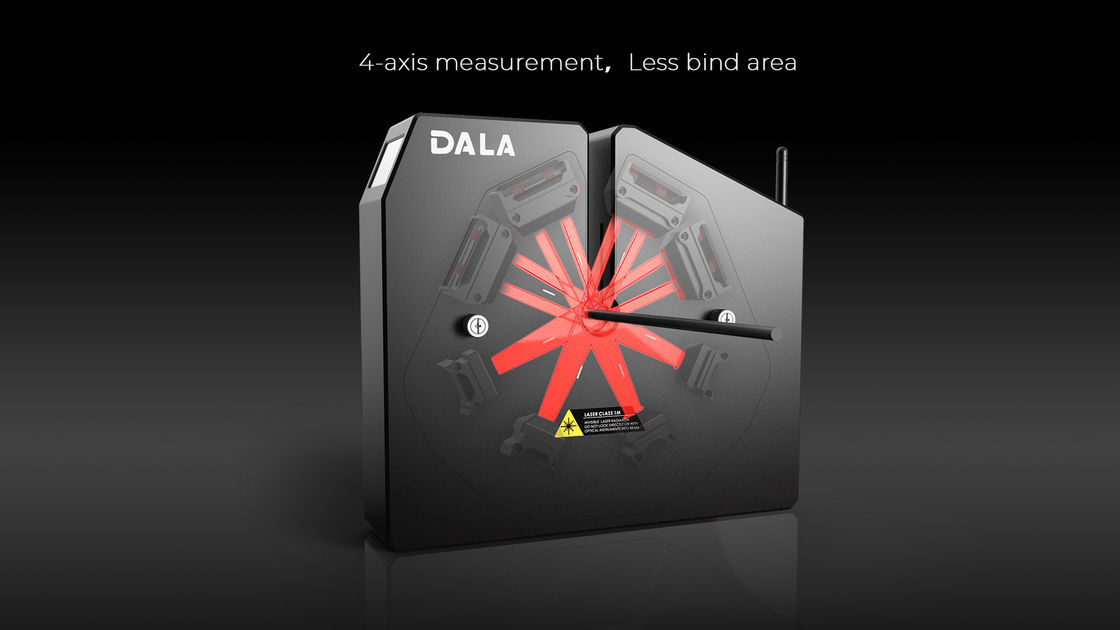

Multi-axis high speed measurement , data collectionis more comprehensiveand accurate , High sampling frequency of 10KHz/second/axis, 4- axis measurement solution, truly reflecting the wire & tube conditions.
| Model | F4010-K |
|---|---|
| Axis | 4-axis |
| Measurement data | diameter and ovality, lump and necks |
| Frequency | 10KHz/axis |
| Measurement range | 0.3~10mm |
| Repeatability(1) | ±0.2μm |
| Accuracy(2) |
diameter accuracy:±(0.001+0.01%*D)mm ovality accuracy: ＜0.5mm:±0.004mm ≥0.5mm: ±2(0.001+0.01%*D)mm |
| Min defect height | 0.01mm |
| Min defect length(3) | 0.2mm(wire speed120m/min) 0.8mm(wire speed500m/min) |
| Size | 275*242*60mm |
| Working power source | 24V ±10% 40VA |
| Running temperature | 5℃~50℃ |
| Display | LED display |
| Commuincation port |
Standard:WIFI,RS485 MODBUS RTU,CAN |
| Electrical port | Standard: digital output(relay),digital input,analog input,encoder pulse input port Option:PI feedback control(4) |
| Data colletion & analysis | available (option DS14 ZT display and control system,DMS1000) |
| Out-of-tolerance alarm | available |
| Transparent mode | available |
Note:
(1) set sliding window as 100ms, outside diameter repeatability of φ1mm round rod at measurement center area
(2) set sliding window as 100ms, outside diameter deviation of φ1mm round rod at measurement area
(3) set defect measurement average time as 0ms, the minimum defect length which cannot be missed at the measurable area
(4) PI feedback control is option, but must order at placing order
