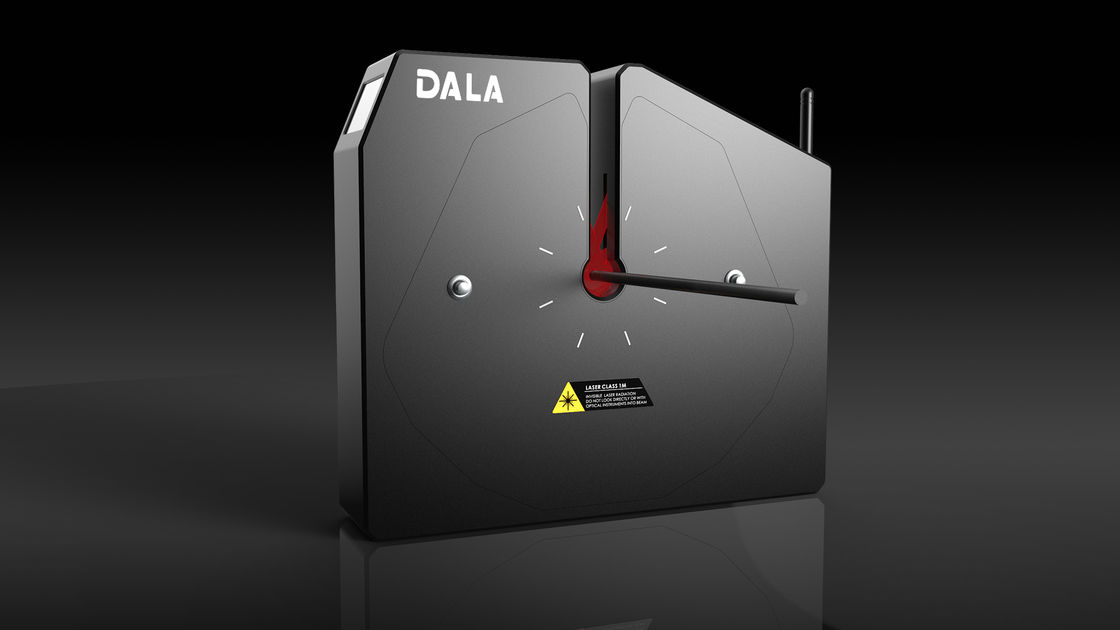

4 Axis Laser Depth Micrometer Diameter Measurement High Accuracy

Product Details

Place of Origin: CHINA

Brand Name: Screate DALA

Model Number: F4010-k

Payment & Shipping Terms

Minimum Order Quantity: Negotiable

Price: Negotiable

Packaging Details: standard packing, as customer demands

Delivery Time: 7 - 15 working Days

Payment Terms: T/T, etc.

Get Best Price
Contact Now
Specifications
Highlight:

4 Axis laser depth micrometer

,

High Accuracy laser depth micrometer

,

4 Axis laser micrometer accuracy

Measurement Data:
Diameter And Ovality, Lump And Necks
Application:
Electric Wire&cable, Steel Wire ,enamelled Copper Wire, Etc.
Measurement:
0.3~10mm
Repeatability:
±0.2μm
Frequency:
10KHz/axis
Size:
275*242*60mm
Working Power Source:
24V ±10% 40VA
Communication:
WIFI,RS485 MODBUS RTU,CAN,PROFINET,PROFIBUS,ETHERNET IP
Measurement Data:
Diameter And Ovality, Lump And Necks
Application:
Electric Wire&cable, Steel Wire ,enamelled Copper Wire, Etc.
Measurement:
0.3~10mm
Repeatability:
±0.2μm
Frequency:
10KHz/axis
Size:
275*242*60mm
Working Power Source:
24V ±10% 40VA
Communication:
WIFI,RS485 MODBUS RTU,CAN,PROFINET,PROFIBUS,ETHERNET IP
Description
4 Axis Laser Depth Micrometer Diameter Measurement High Accuracy



Four-Axis Measurement: Faster, More Accurate, More Reliable

F4010-K are based on the principle of laser diffraction (Fresnel diffraction), with a simple structure that can provide stable and
accurate measurements for a long service time.

The four-axis measurement solution minimizes blind spots, perfectly meeting the stringent requirements of industries such as cables, wires, and pipes for the continuous production of high-quality products.

F4010-k is versatile, applicable to various materials such as electric wire & cable,steel wire, enamelled copper wire, medical tubing, 3D filament, and more, regardless of their transparency.


4 Axis Laser Depth Micrometer Diameter Measurement High Accuracy 0



4-axis measurement ,Less bind area

The below figure explains the relation between the measurement result and nos of axis. The
more nos of axis, the less bind area it is , and measurement accurate will be more accurate.

4 Axis Laser Depth Micrometer Diameter Measurement High Accuracy 1







lump and necks detection

Compare each single measurement value with running average value, If a single measurement is more than running average value and higher or lower than threshold value, then it is a defect.



4 Axis Laser Depth Micrometer Diameter Measurement High Accuracy 2






Touch Screen,Computer,Cellphone

DALA F4010-K can be managed by computer ,cellphone and Touch screen,like parameter setting ,measurement data management ,

and so on,customers can choose as their application request.
4 Axis Laser Depth Micrometer Diameter Measurement High Accuracy 3

Technical Specification



Model F4010-K
Axis 4-axis
Measurement data diameter and ovality, lump and necks
Frequency 40KHz
Measurement range 0.3~10mm
Repeatability(1) ±0.2μm
Accuracy(2)

diameter accuracy:±(0.001+0.01%*D)mm

ovality accuracy:

<0.5mm:±0.004mm

≥0.5mm: ±2(0.001+0.01%*D)mm

Min defect height 0.01mm
Min defect length(3) 0.2mm(wire speed120m/min)
0.8mm(wire speed500m/min)
Size 275*242*60mm
Working power source 24V ±10% 40VA
Running temperature 5℃~50℃
Display LED display
Commuincation port

Standard:WIFI,RS485 MODBUS RTU,CAN
Option:PROFIBUS,PROFINET, EtherNet/IP,EtherCAT

Electrical port Standard: digital output(relay),digital input,analog input,encoder pulse input port
Option:PI feedback control (4)
Data colletion & analysis available (option DS14 ZT display and control system,DMS1000)
Out-of-tolerance alarm available
Transparent mode available



Note:

(1) set sliding window as 100ms, outside diameter repeatability of φ1mm round rod at measurement center area

(2) set sliding window as 100ms, outside diameter deviation of φ1mm round rod at measurement area

(3) set defect measurement average time as 0ms, the minimum defect length which cannot be missed at the measurable area

(4) PI feedback control is option, but must order at placing order
