Product Details
Place of Origin: CHINA
Brand Name: Screate DALA

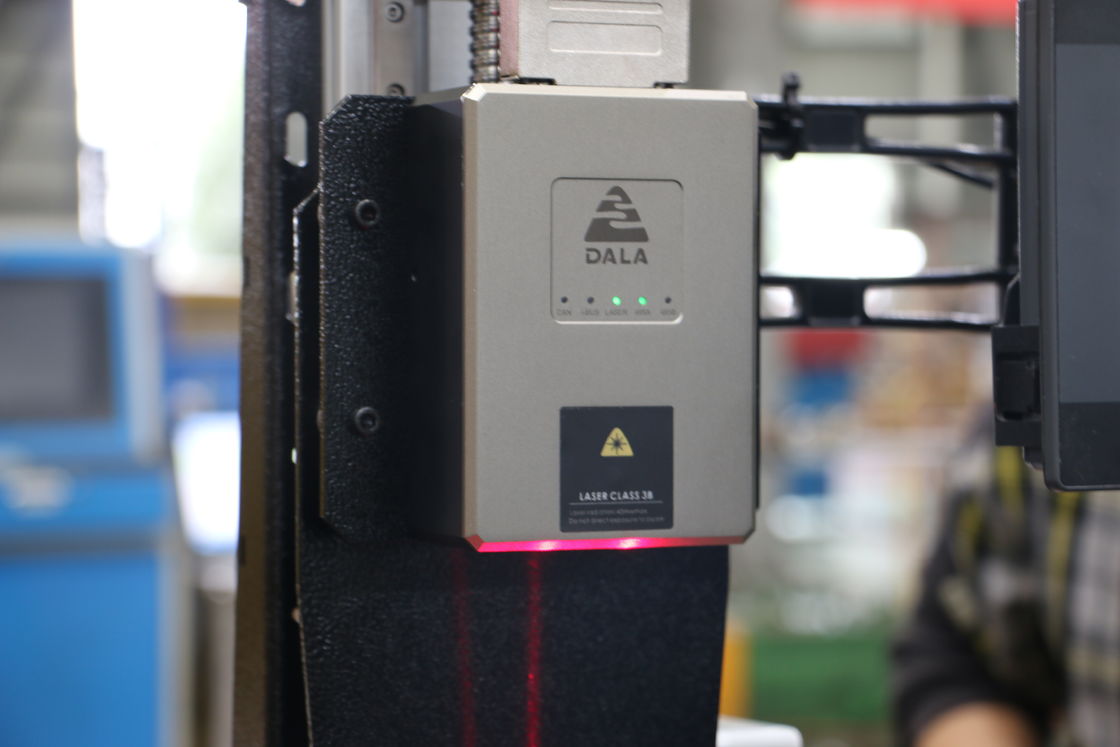

Model Number: DLS300
Payment & Shipping Terms
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: standard packing, as customer demands
Delivery Time: 7 - 15 working Days
Payment Terms: T/T, etc.
Measurement Data: |
Length,speed |
Application: |
Wire And Cables , Sheeting, Pipe And Tube, Etc. |
Min Speed: |
0.5(m/min) |
Max Speed: |
2000(m/min) |
Accuracy: |
±0.5% |
Size: |
296*270*54mm |
Working Power Source: |
24VDC/8W |
Communication: |
RS485,PROFINET, PROFIBUS, Ethernet/IP, DeviceNet |
Measurement Data: |
Length,speed |
Application: |
Wire And Cables , Sheeting, Pipe And Tube, Etc. |
Min Speed: |
0.5(m/min) |
Max Speed: |
2000(m/min) |
Accuracy: |
±0.5% |
Size: |
296*270*54mm |
Working Power Source: |
24VDC/8W |
Communication: |
RS485,PROFINET, PROFIBUS, Ethernet/IP, DeviceNet |
Customer can check object moving speed and length etc., and export the data as well.
| Model | DLS300 | |
|---|---|---|
| Min speed(m/min) | 0.5 | |
| Max speed(m/min) | 2000 | |
| Standard measurement distance(mm) | 315(±30mm) | |
| Depth(mm) | ±30 | |
| Accuracy(%) | ±0.05 | |
| Repeatability(%) | ±0.02 | |
| Max. acceleration(m/s2) | 500 | |
| Measurement update time | 20us | |
| Working power | 24VDC/8W | |
| Environmental protection level | IP56 | |
| Working temperature | 5-45℃(Protection case is available for higher temperature) | |
| Size(L*W*Hmm) | 150 * 100 * 59 | |
| Laser beam diameter( mm) | 3 | |
| Laser Class | 3B | |
| Pulse output | 2X pulse output or 1X quadrature output, programmable, pulse speed rate less than 1M Hz | |
| Digital input | Shutter enable | |
| Digital output | 2 programmable output | |
| Standard communication port | RS-485(Modbus RTU) | |
| Communication port options | PROFINET,PROFIBUS,Ethernet/IP,DeviceNet | |
| Display communication | RS-485(Modbus RTU) | |
