Portable Optical Laser Scan Micrometer For Medical Tube 24V

Name: Portable Optical Laser Scan Micrometer For Medical Tube 24V
Brand: SCreate Dala Technology Co., Ltd.
SKU: TL-2025D
Availability: InStock

Product Details

Place of Origin: CHINA

Brand Name: Screate DALA

Model Number: TL-2025D

Payment & Shipping Terms

Minimum Order Quantity: Negotiable

Price: Negotiable

Packaging Details: standard packing, as customer demands

Delivery Time: 7 - 15 working Days

Payment Terms: T/T, etc.

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                    Portable laser scan micrometer, 24V laser scan micrometer, Medical Tube portable laser micrometer


Measurement Data:	Diameter & Ovality, Width & Thcikness， Lump & Necks(only For Round Wire)	Application:	Flat Wire，round Wire
Measurement:	0.2~25mm	Repeatability:	±0.1um
Accuracy:	±2um	Size:	29627054mm
Working Power Source:	24V ±10% 40VA	Communication:	WIFI,RS485 MODBUS RTU,CAN,PROFINET,PROFIBUS,ETHERNET IP

Measurement Data:	Diameter & Ovality, Width & Thcikness， Lump & Necks(only For Round Wire)
Application:	Flat Wire，round Wire
Measurement:	0.2~25mm
Repeatability:	±0.1um
Accuracy:	±2um
Size:	29627054mm
Working Power Source:	24V ±10% 40VA
Communication:	WIFI,RS485 MODBUS RTU,CAN,PROFINET,PROFIBUS,ETHERNET IP

Description

Portable Optical Laser Scan Micrometer For Medical Tube 24V

The Combination of Speed,Durability and Stability

Portable Optical Laser Scan Micrometer For Medical Tube 24V 0

Measurement Principle

When the object is caught by laser beam passed through lens, a bright and dark area will be formed on CCD,then the object dimension will be accurately calculated through software analysis and calculation.

Portable Optical Laser Scan Micrometer For Medical Tube 24V 1

Strong Adaptability to Mist and Dust

Precision CNC manufacturing, with impact resistance of 10G/6ms, vibration resistance of 10-55Hz/1.5 in XYZ for 2 hours, preventing the
optical parts from damaging.

Individual temperature compensation technology enables the device measurement results not to be affected by temperature change.*

*The measurement diameter change will be≤0.001mm if object diameter is 10mm.

Measurement is accurate even if there is water and dust

Thanks to individual optical system and measurement algorithm, the measurement data of TL-2025D is still accurate at complex environment.

Portable Optical Laser Scan Micrometer For Medical Tube 24V 3

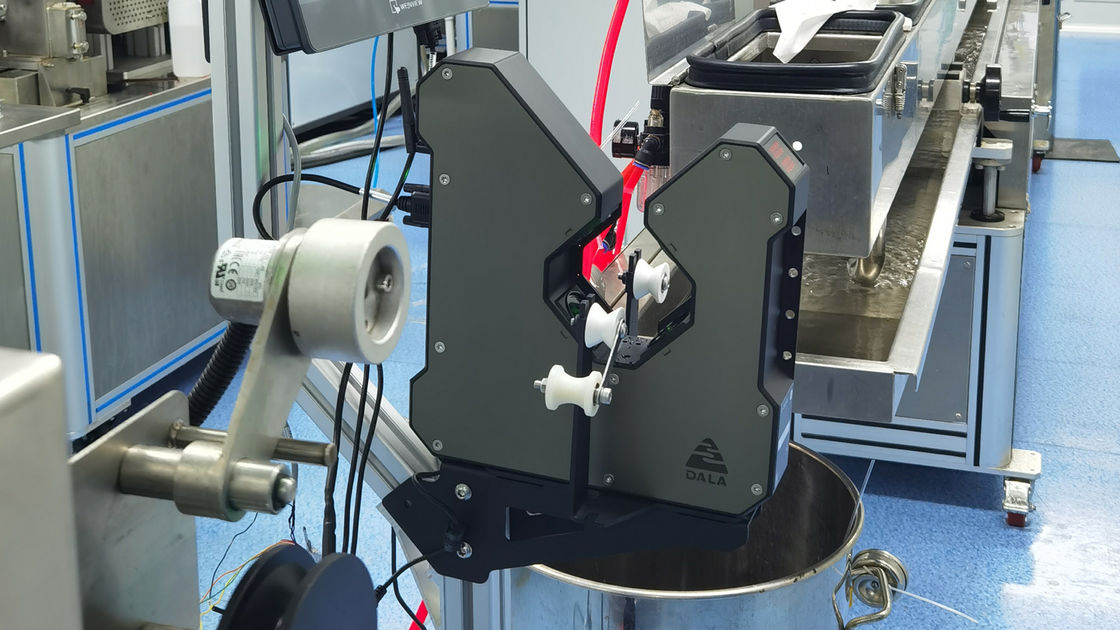

Application

Portable Optical Laser Scan Micrometer For Medical Tube 24V 4

Touch Screen,Computer,Cellphone

DALA TL-2025D can be managed by touch screen,computer and cellphone,like parameter setting ,measurement data management ,and so on,customers can choose as their application request.

Portable Optical Laser Scan Micrometer For Medical Tube 24V 5

Technical Specification

Model	TL-2025D
Axis	2-axis
Measurement data	Diameter &Ovality,Width&Thcikness, Lump&Necks
Application field	Round wire ,Transparent wire, Flat wire
Sampling frequency	10KHz(signal axis)
Measurement range	0.2~25mm
Repeatability⁽¹⁾	±0.1μm
Measurement accuracy⁽²⁾	±2μm
Dimensional	29627054mm
Working power	24V ±10% 40VA
Display	LED
Communication port	Default:WIFI,RS485 MODBUS RTU,CAN Option:PROFIBUS,PROFINET, EtherNet/IP Industrail bus and Industrial EtherNet,etc.
Electrical port	Default:Digital output (relay), Digital input,Analog input encoder pulse input port. Option: PI feedback control⁽³⁾
Environmental adaptability	Working Environment	0~50 ℃
	Working Environment	20~85%RH(No condensation)
	Working environmental brightness	Brightness of working environment Incandescent light, fluorescent lamp 3000lx or less
	Vibrating resistance	10~55Hz full amplitude 1.5mm in XYZ direction for 2 hours
	Impact resistance	10G/6ms
Data colletion & analysis	DMS1000 measurement software system,DS14 ZT display and control system
Out-of-tolerance alarm	Support
Transparent mode	Support
Water-proof grade	IP65

Note:

(1)Set the average number of times to 1150 and measure the ±2σ value of the round standard rod of diameter 10mm at the measurement area center;

(2)For object diameter of 10mm, the measurement accuracy is ±2um when it moves in the center of 8*8mm；

(3)PI feedback control option shall be ordered at placing device order.
